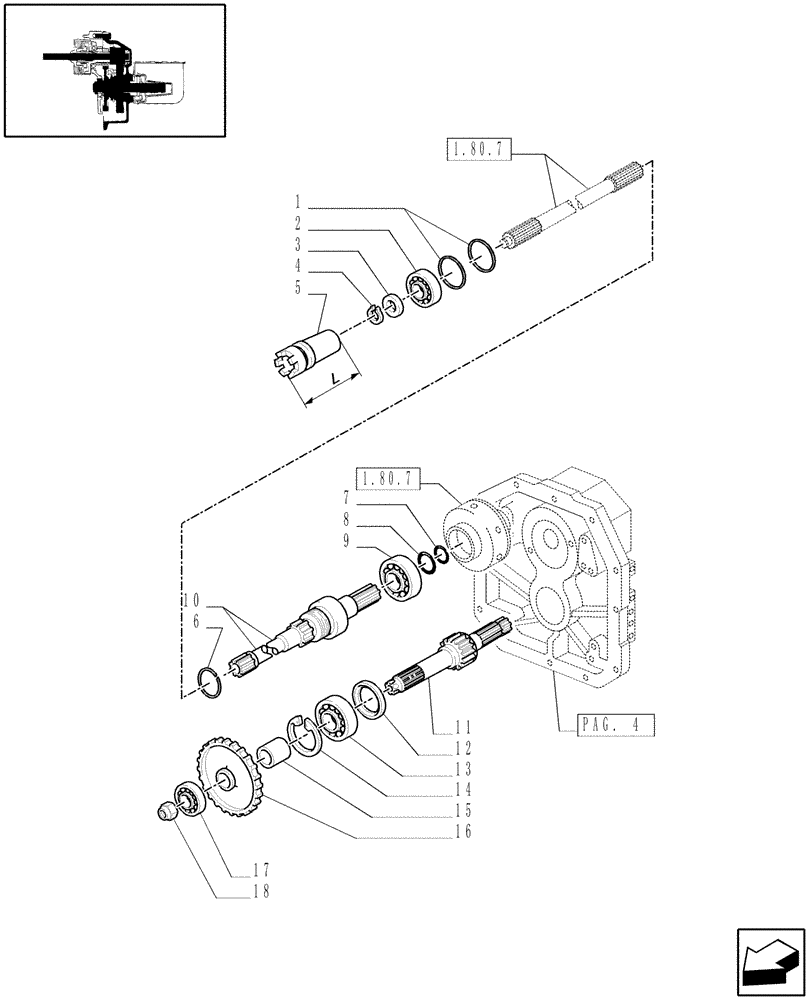

Запчасти Case IH JX100U (1.80.1[05]) - POWER TAKEOFF - SHAFTS & GEARS (07) - HYDRAULIC SYSTEM

1

5175996

RETAINER

60.7X65X2.32

2шт.

2

28995900

BALL BEARING,45mm ID x 100mm OD x 25mm W

Roller/Taper, 45X100X25

1шт.

3

4996869

THRUST WASHER,40.1mm ID x 62mm OD x 5mm Thk

40.3X62X5

1шт.

4

11068876

SNAP RING,M40, Ext

1шт.

5

5176745

COUPLING

L = 84MM

1шт.

6

13398976

SNAP RING,M40, Int

1шт.

7

14454680

O-RING,1.489" ID x 0.07" Width

1шт.

8

14455080

O-RING,50.52mm ID x 1.78mm

1шт.

9

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

Roller/Taper, 55X100X21

1шт.

10

5176749

SHAFT

1шт.

11

5171405

SHAFT

1шт.

12

5165976

OIL SEAL,60mm ID x 80mm OD x 10mm Thk

60 x 80 x 10

1шт.

13

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

1шт.

14

11062476

SNAP RING,M90, Int

1шт.

15

5167815

SPACER,40.1mm ID x 50mm OD x 54.0mm L

1шт.

16

5109725

DRIVEN GEAR

1шт.

17

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

Roller/Taper, 38X80X21

1шт.

18

5122985

NUT,Ring, M32, 1.5 Pitch

M32X1.5

1шт.
