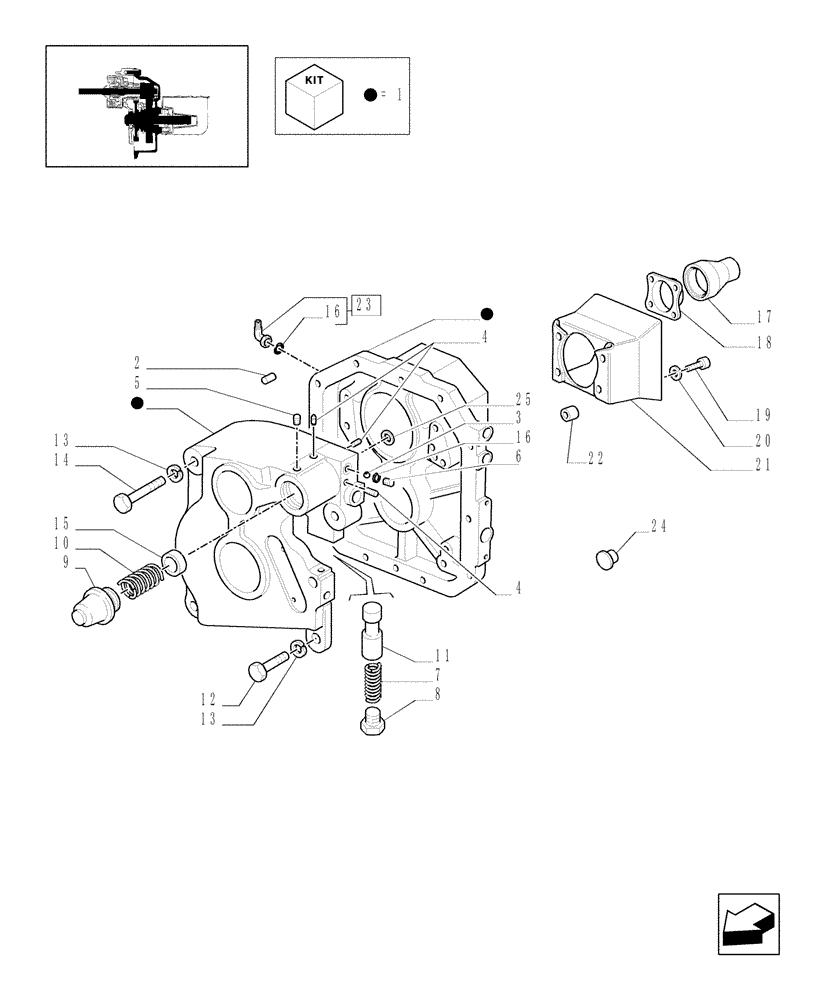

Запчасти Case IH JX100U (1.80.1[04]) - POWER TAKEOFF - COVER & GUARD (07) - HYDRAULIC SYSTEM

1

5189196

SUPPORT

INCL. 2, 4, 5

1шт.

Three hydraulic ports along left side of cover Three hydraulic ports along left side of cover.

1шт.

2

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

3

20419310

BALL

D = 7/32"

1шт.

4

10269150

PLUG,M6 x 1 x 60mm L

M6

2шт.

5

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

M10 x 1.25

2шт.

6

5183078

PLUG

1шт.

7

5166012

SPRING,Compression, 7.5mm OD x 57mm L

1шт.

8

5180551

PLUG

M16X1.5

1шт.

9

5197632

CAP

1шт.

10

5137481

SPRING,Compression, 32mm OD x 122mm L

1шт.

11

5194481

PISTON

1шт.

12

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

13

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

14

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

15

5137480

PISTON,40mm OD

1шт.

16

14437685

O-RING,9.30mm ID x 2.40mm

2шт.

17

5171520

SHIELD,132mm L

, Serial Range: -1319242

2шт.

17

47125899

COVER,109mm L

, Start Serial: 1319243

1шт.

18

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

19

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

20

10569370

LOCK WASHER,8.1mm ID x 12.7mm OD x 2mm Thk

M8X25

4шт.

21

5166297

SHIELD

1шт.

21

82003566

SHIELD

Equip. 849

1шт.

22

5166305

SPACER

9X15X12

2шт.

23

5166932

90 ELBOW,1/2-20 UNF, M12 x 1.5

1шт.

24

5196779

PLUG,Cap locking hole

D=9

2шт.

25

14456881

O-RING,0.362" ID x 0.103" Width

1шт.
