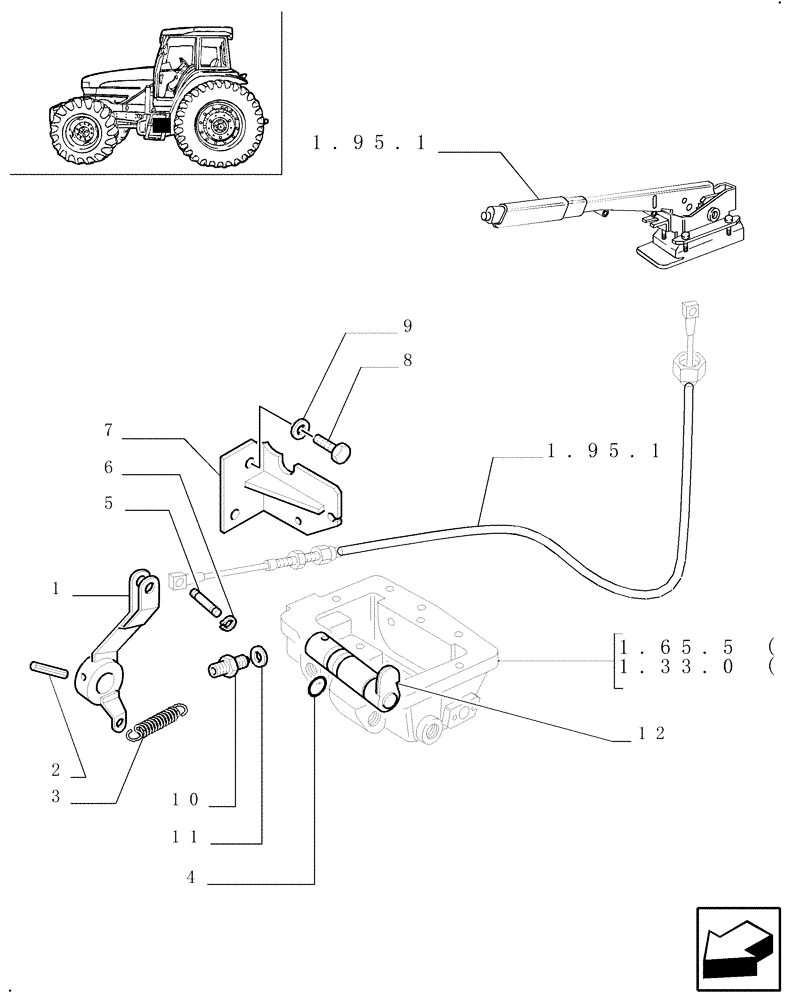

Запчасти Case IH JX100U (1.67.2) - HANDBRAKE CONTROL (05) - REAR AXLE

1

5173297

LEVER

4WD

1шт.

1

5173768

LEVER

2WD

1шт.

2

13917170

ROLL PIN,M10 x 55, Coiled

2шт.

3

5127295

SPRING,Extension, 24mm OD x 100mm L

1шт.

4

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

5

5111831

PIN,8mm OD x 38mm L

, Serial Range: -1317843

1шт.

5

47134179

PIN,8mm OD x 38mm L

, Start Serial: 1317844

1шт.

6

11065676

SNAP RING,M8, Ext

2шт.

7

5183157

PLATE

1шт.

8

15540321

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

9

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

10

5118107

PLUG

M12X1.25X14

1шт.

11

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

12

5123850

PIN,30mm OD x 138mm L

2WD

1шт.

12

5162774

PIN,30mm OD x 105.5mm L

4WD

1шт.
