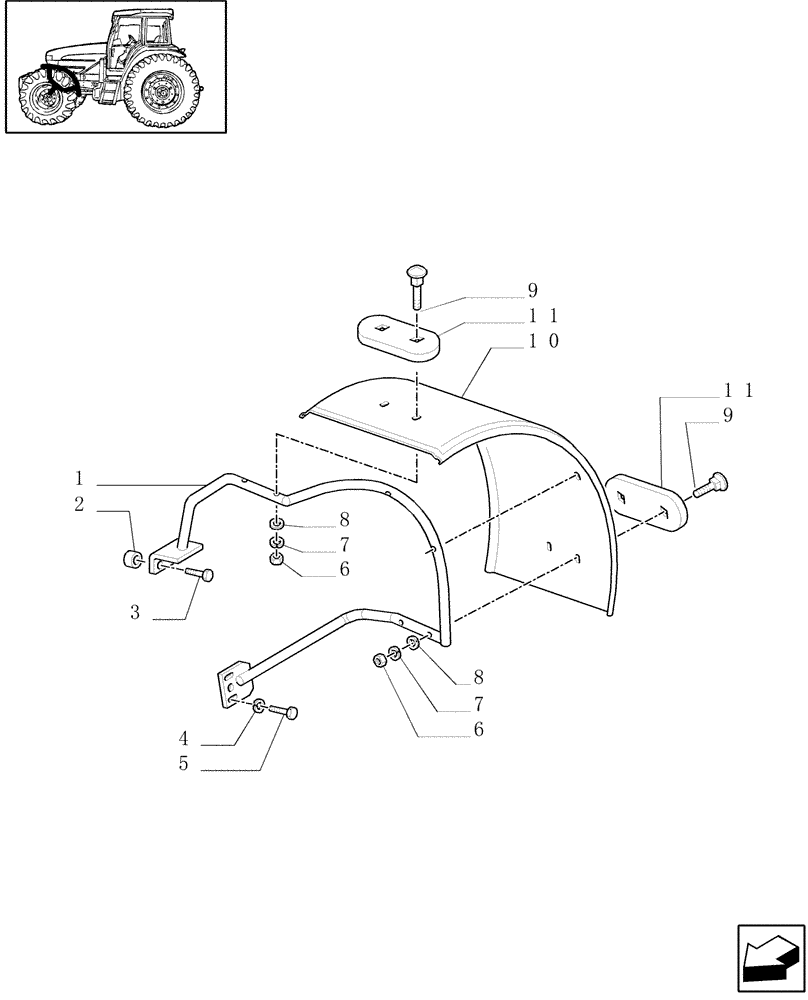

Запчасти Case IH JX100U (1.43.0/05[01]) - (VAR.860) FRONT MUDGUARDS - 2WD (04) - FRONT AXLE & STEERING

1

5175227

SUPPORT

LH

1шт.

1

5175228

SUPPORT

RH

1шт.

2

5125186

SPACER

17 x 32 x 8

2шт.

3

16215324

BOLT,Hex, M14 x 1.5 x 90mm, Cl 8.8

2шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

5

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

6

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

12шт.

7

12605574

WASHER

12шт.

8

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

12шт.

9

13181301

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 45mm, Cl 4.6

12шт.

10

5174631

FRONT FENDER

2шт.

11

5122259

REINFORCEMENT

4шт.
