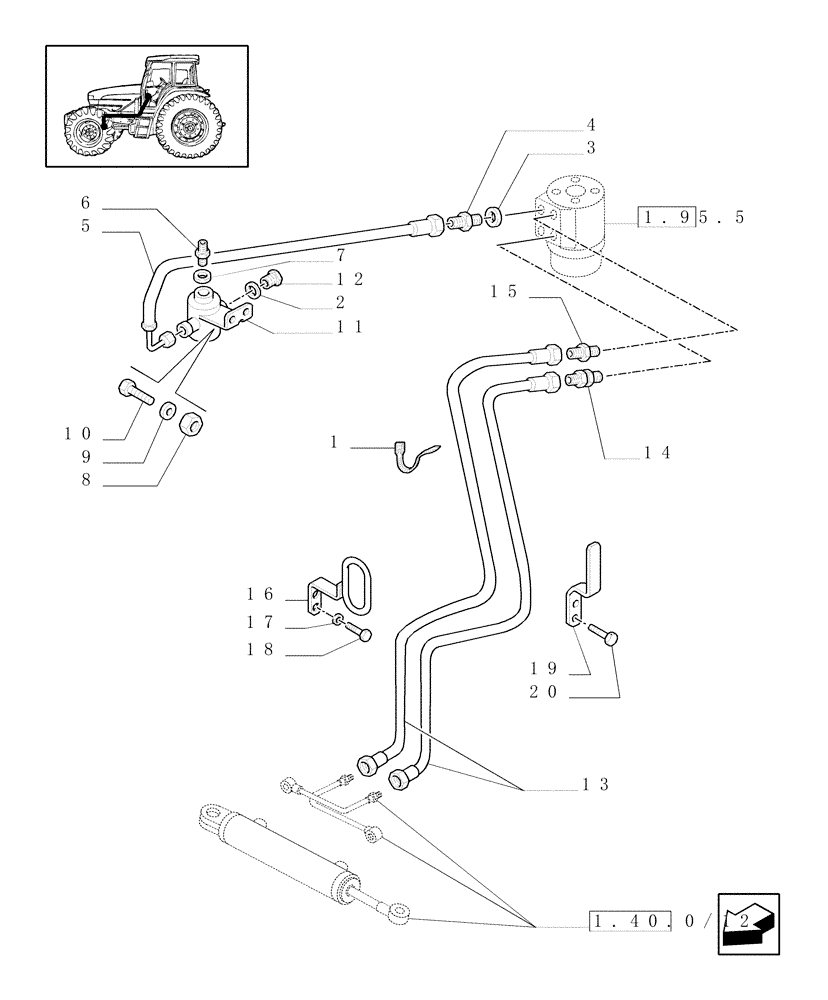

Запчасти Case IH JX100U (1.42.0/01[02]) - FRONT AXLE - 4-WD - POWER STEERING HYDRAULIC CONTROL - PIPES & BRACKETS (04) - FRONT AXLE & STEERING

1

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

2

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

3

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

4

5155674

HYD CONNECTOR

3/4"-16/M22 x 1.5

1шт.

5

5168769

FLEXIBLE HOSE,10mm ID x 600mm L, SAE 100R1

1шт.

6

5171534

HYD CONNECTOR,7/8" - 14 JIC x M18 x 1.5 ORB

7/8"-14

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

8

16100821

NUT,M8, Cl 10

JX70U, JX80U

2шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

JX70U, JX80U

2шт.

10

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

JX70U, JX80U

2шт.

10

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

JX90U, JX100U

2шт.

11

5168770

RESERVOIR, HYDRAULIC

JX70U, JX80U

1шт.

11

5168775

RESERVOIR, HYDRAULIC

JX90U, JX100U

1шт.

12

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

13

5170482

FLEXIBLE HOSE,8mm ID x 1600mm L, SAE 100R1

2шт.

14

82002234

VALVE, PRESSURE CONT

JX70U, Pressure Bias Valve

1шт.

15

82002496

HYD CONNECTOR,M18 x 1.5 ORFS x 9/16" - 18 JIC

9/16"-M18X1.5

1шт.

16

5174221

BRACKET

1шт.

17

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

18

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

19

5183525

BRACKET

JX70U, JX80U

1шт.

20

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.
