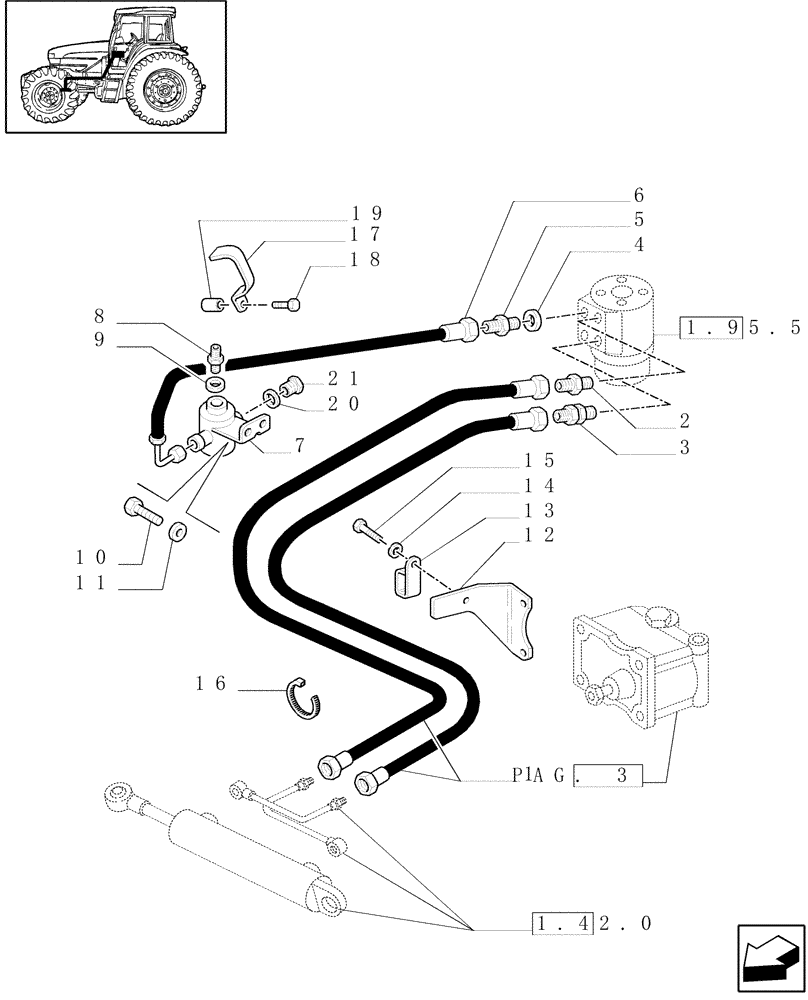

Запчасти Case IH JX100U (1.42.0[04]) - FRONT AXLE - 2-WD - POWER STEERING HYDRAULIC CONTROL - PIPES & BRAKETS (04) - FRONT AXLE & STEERING

1

5168836

FLEXIBLE HOSE,8mm ID x 1850mm L, SAE 100R2

2шт.

2

82002496

HYD CONNECTOR,M18 x 1.5 ORFS x 9/16" - 18 JIC

9/16"-18/M18X1.5

1шт.

3

82002234

VALVE, PRESSURE CONT

Pressure Bias Valve

1шт.

4

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

5

5155674

HYD CONNECTOR

3/4"-16/M22 x 1.5

1шт.

6

5168769

FLEXIBLE HOSE,10mm ID x 600mm L, SAE 100R1

1шт.

7

5168775

RESERVOIR, HYDRAULIC

1шт.

8

5171534

HYD CONNECTOR,7/8" - 14 JIC x M18 x 1.5 ORB

M18X1,5-7/8"-14

1шт.

9

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

10

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

11

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

12

5173895

BRACKET

1шт.

13

5156429

CLAMP

1шт.

14

10516474

LOCK WASHER

D=6

1шт.

15

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

16

5154887

CABLE TIE,M7.8 x 450

CABLE STRAP

1шт.

17

5174476

CLAMP

1шт.

18

16044721

SCREW,Hex, M8 x 75mm, Cl 8.8

1шт.

19

5153018

SPACER

D = 8X14X45

1шт.

20

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

1шт.

21

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

1шт.
