Запчасти Case IH JX100U (1.40.0/46[04]) - (VAR.327-327/1) FRONT DIFFERENTIAL HYDRAULIC LOCKING - SLEEVES AND COVER PLATE (04) - FRONT AXLE & STEERING

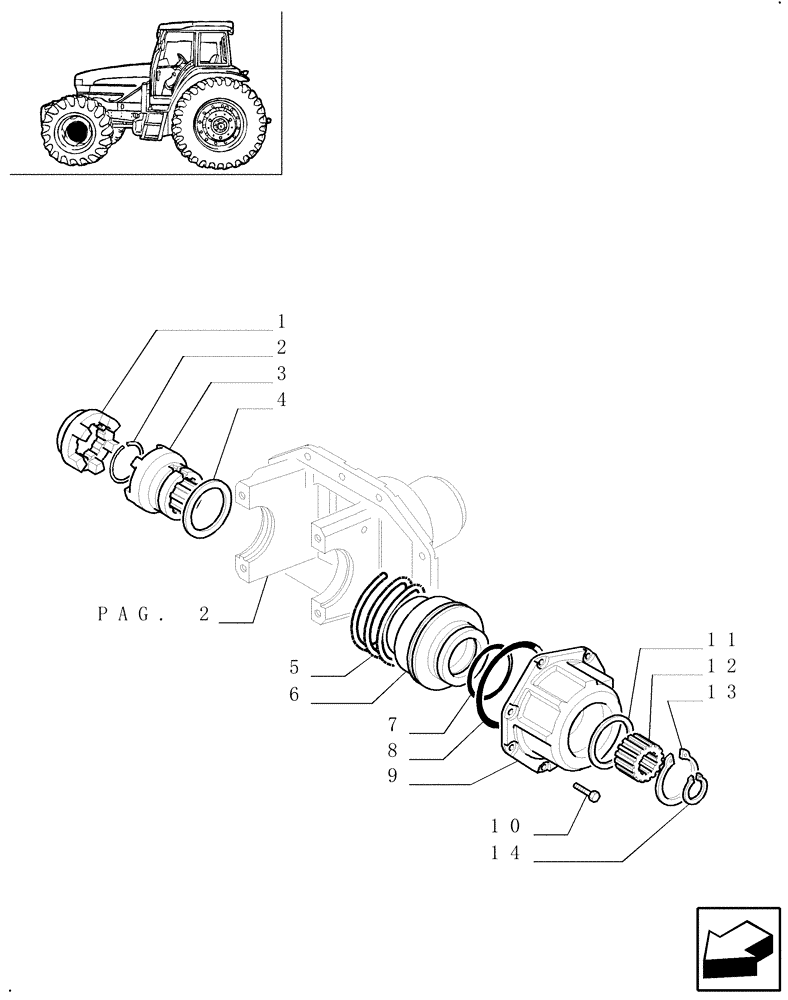

Схема запчастей Case IH JX100U - (1.40.0/46[04]) - (VAR.327-327/1) FRONT DIFFERENTIAL HYDRAULIC LOCKING - SLEEVES AND COVER PLATE (04) - FRONT AXLE & STEERING
13
1
2
pag. 2
9
14
10
7
4
6
11
8
5
3
12

Артикул

Название

Примечание

Количество

1

5153349

SLEEVE,61mm ID x 90mm OD x 31,8mm L

1шт.

2

5153351

SNAP RING,55.5mm ID

D = 3 x 54

1шт.

3

5153350

SLEEVE,22T

1шт.

4

5153392

THRUST WASHER,72.5mm ID x 90mm OD x 2.8mm Thk

1шт.

5

5154040

SPRING,100mm ID x 120mm OD x 87mm L

1шт.

6

5155169

PISTON

1шт.

7

14465781

O-RING,3.609" ID x 3.887" OD x 0.139"

1шт.

8

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

1шт.

9

5155167

HOUSING

1шт.

10

14233824

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8

6шт.

11

5153391

THRUST WASHER,67mm ID x 83mm OD x 3mm Thk

1шт.

12

5153390

HUB

1шт.

13

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

14

11070376

SNAP RING,M70, Ext

1шт.

Выбрано товаров: 14
