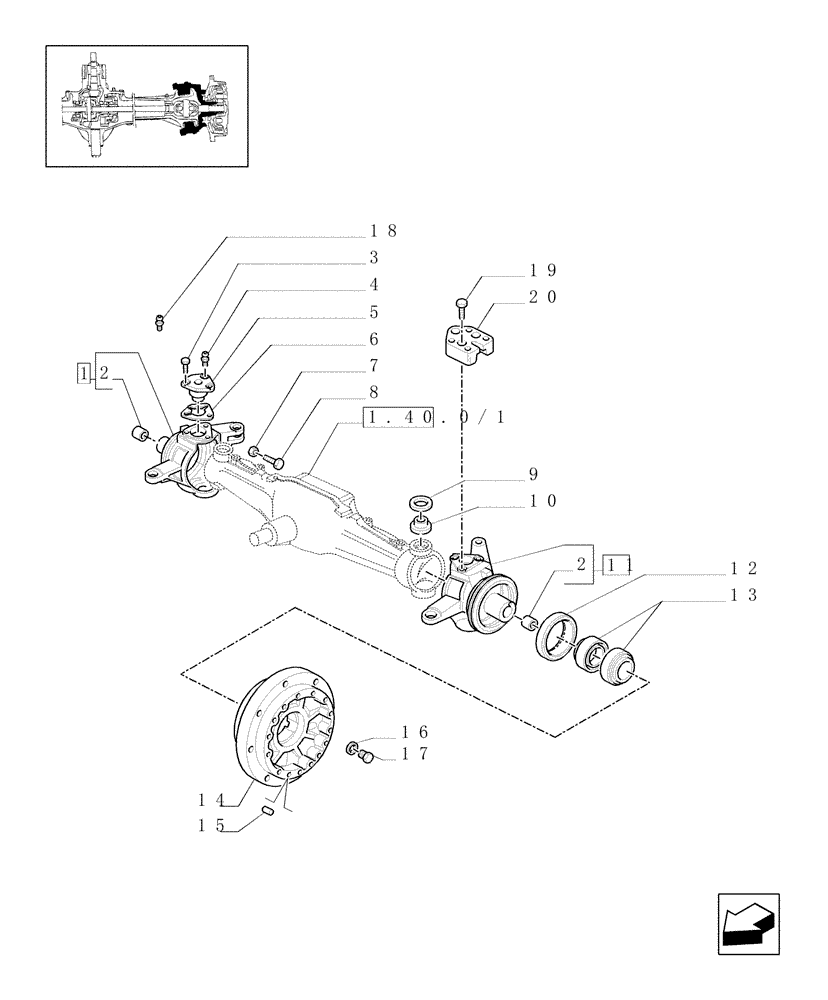

Запчасти Case IH JX100U (1.40.0/24[02]) - (VAR.327/1) ELECTROHYD. FRONT DIFFENTIAL LOCK, BRAKES AND MUDGUARDS - STEERING PIVOT PIN (04) - FRONT AXLE & STEERING

1

5181313

GLAND

RH

1шт.

2

5104199

BUSHING

42 x 46 x 28

2шт.

3

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

4

13407211

LUBE NIPPLE,M10 x 1

2шт.

4

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

5

5137239

BALL STUD

BALL PIN

4шт.

6

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

6

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

7

10717611

NUT,Thin, M18 x 2.5, Cl 04

4шт.

8

5167638

SCREW

M18X105

2шт.

8

5173991

STOP,Steering

M18X60

2шт.

9

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

70mm OD, 56mm ID, 7.5-10mm Thk

4шт.

10

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

M18X105

4шт.

11

5181288

GLAND

LH

1шт.

12

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

2шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

4шт.

14

5177838

HUB

2шт.

15

4985063

DOWEL,12mm OD x 20mm L

12X20

2шт.

16

10282260

SEAL,28.4mm ID x 36mm OD x 1.5mm Thk

4шт.

17

10278301

PLUG,M28 x 1.5 x 11, Brass

2шт.

18

13413290

BREATHER

28X36X1.5

2шт.

19

14274734

LOCK BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9

4шт.

19

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

8шт.

20

5182371

PLATE

LH

1шт.

20

5189846

PLATE

RH

1шт.
