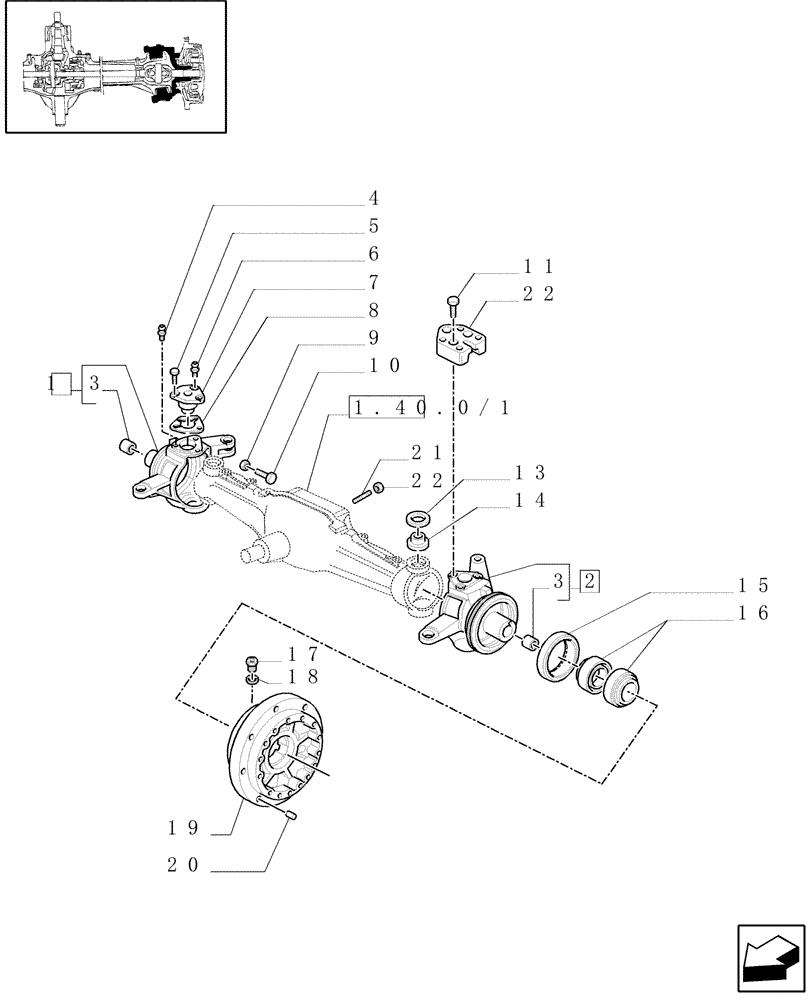

Запчасти Case IH JX100U (1.40.0/23[02]) - (VAR.325) ELECTROHYD. FRONT DIFFENTIAL LOCK 40 KM/H, BRAKES AND MUDGUARDS - STEERING PIVOT PIN (04) - FRONT AXLE & STEERING

1

5181313

GLAND

RH

1шт.

2

5181288

GLAND

LH

1шт.

3

5104199

BUSHING

42 x 46 x 28

2шт.

4

13413290

BREATHER

2шт.

5

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

6

13407211

LUBE NIPPLE,M10 x 1

2шт.

6

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

7

5137239

BALL STUD

BALL PIN

4шт.

8

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

8

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

9

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

10

5167638

SCREW

M18X105

2шт.

10

5173991

STOP,Steering

M18X67

2шт.

11

14274734

LOCK BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9

4шт.

11

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

8шт.

12

5182371

PLATE

LH

1шт.

12

5189846

PLATE

RH

1шт.

13

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

70mm OD, 56mm ID, 7.5-10mm Thk

4шт.

14

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

4шт.

15

5133736

SEAL,186.2mm ID x 220mm OD x 20mm Thk

190X220X21

2шт.

16

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

109.538X158.750X23.02

4шт.

17

10278301

PLUG,M28 x 1.5 x 11, Brass

2шт.

18

10282260

SEAL,28.4mm ID x 36mm OD x 1.5mm Thk

2шт.

19

5177838

HUB

2шт.

20

4985063

DOWEL,12mm OD x 20mm L

12X20

2шт.

21

87309002

SET SCREW

M12X1.25X65

2шт.

22

16101524

NUT,M12 x 1.25, Cl 10

2шт.
