(1.40.0/10[03]) - FRONT AXLE - DIFFERENTIAL GEARS AND SHAFT - 4WD - HALF-SHAFTS

Запчасти Case IH JX100U (1.40.0/10[03]) - FRONT AXLE - DIFFERENTIAL GEARS AND SHAFT - 4WD - HALF-SHAFTS (04) - FRONT AXLE & STEERING

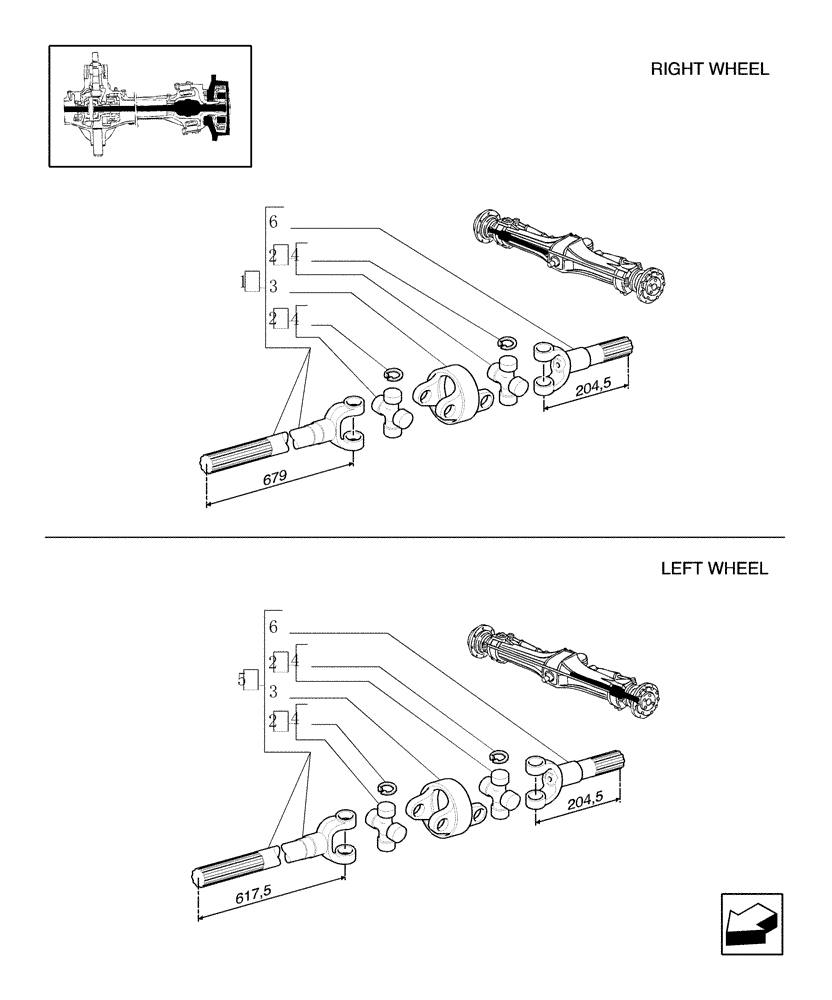

Схема запчастей Case IH JX100U - (1.40.0/10[03]) - FRONT AXLE - DIFFERENTIAL GEARS AND SHAFT - 4WD - HALF-SHAFTS (04) - FRONT AXLE & STEERING
2
3
4
3
6
2
2
4
1
4
5
4
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5166549

ARTICULATED SHAFT

1шт.

2

5191547

U-JOINT SPIDER

4шт.

3

5191550

YOKE

2шт.

4

5191548

CIRCLIP

16шт.

5

5166562

ARTICULATED SHAFT

1шт.

6

5191549

SHAFT

199.5 mm

2шт.

7

5191561

SHAFT

1шт.

8

5191559

SHAFT

612.5 mm

1шт.
