Запчасти Case IH JX100U (1.34.2/02[01]) - (VAR.113-119-119/1) SYNCHRONIZED CREEPER AND REVERSER UNIT - CROSS-PIECE AND PARTS (04) - FRONT AXLE & STEERING

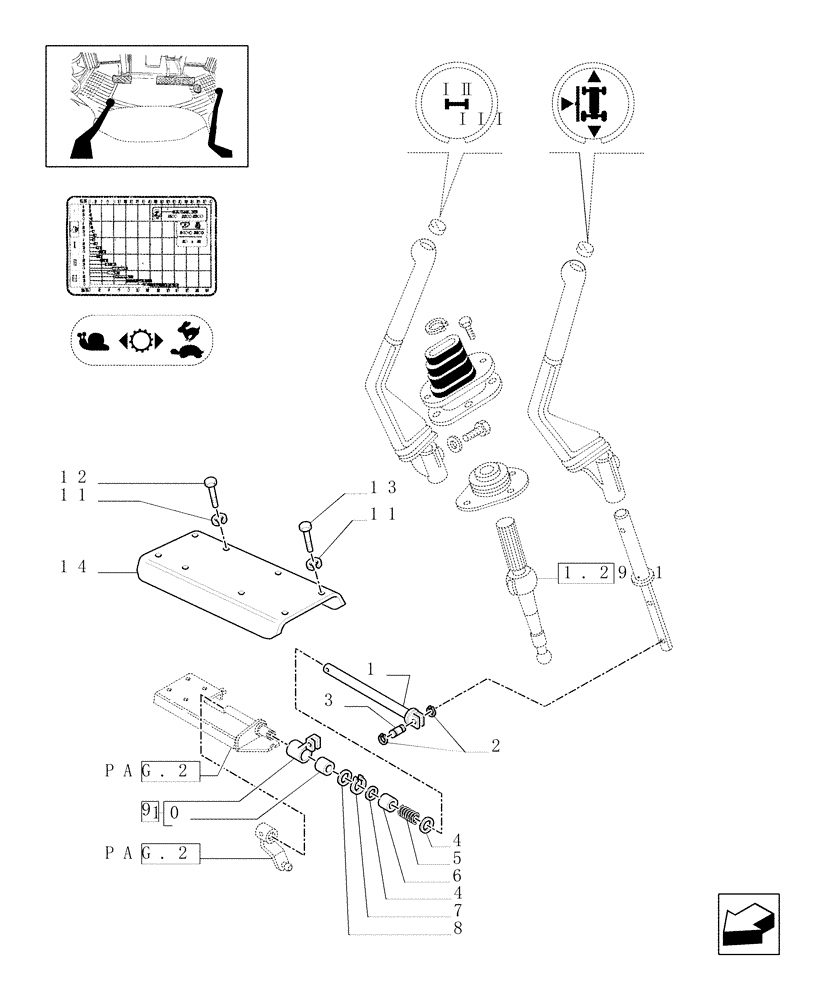

Схема запчастей Case IH JX100U - (1.34.2/02[01]) - (VAR.113-119-119/1) SYNCHRONIZED CREEPER AND REVERSER UNIT - CROSS-PIECE AND PARTS (04) - FRONT AXLE & STEERING
12
6
10
1
3
pag.2
ii
8
11
9
13
4
i
11
7
5
14
4
1.29.1
2
iii
pag.2

Артикул

Название

Примечание

Количество

1

5173727

SHAFT

1шт.

2

11065676

SNAP RING,M8, Ext

4шт.

3

5171255

PIN,8mm OD x 34mm L

2шт.

4

5171256

SHIM,22.1mm ID x 38mm OD x 3mm Thk

22X38X3

2шт.

5

585488

SPRING

1шт.

6

5171257

SPACER,22.1mm ID x 27mm OD x 22mm L

22X27X22

2шт.

7

11068076

SNAP RING,M32, Ext

1шт.

8

44907953

WASHER, THRUST,32.2mm ID x 44mm OD x 3mm Thk

32X44X3

1шт.

9

5173579

SUPPORT

1шт.

10

44907939

BUSHING,31.99mm ID x 36mm OD x 30mm L

1шт.

11

17798274

WASHER

8шт.

12

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

13

16043724

BOLT,Hex, M8 x 1.25 x 28mm, Cl 8.8, Full Thd

2шт.

14

5137603

SUPPORT

1шт.

Выбрано товаров: 14
