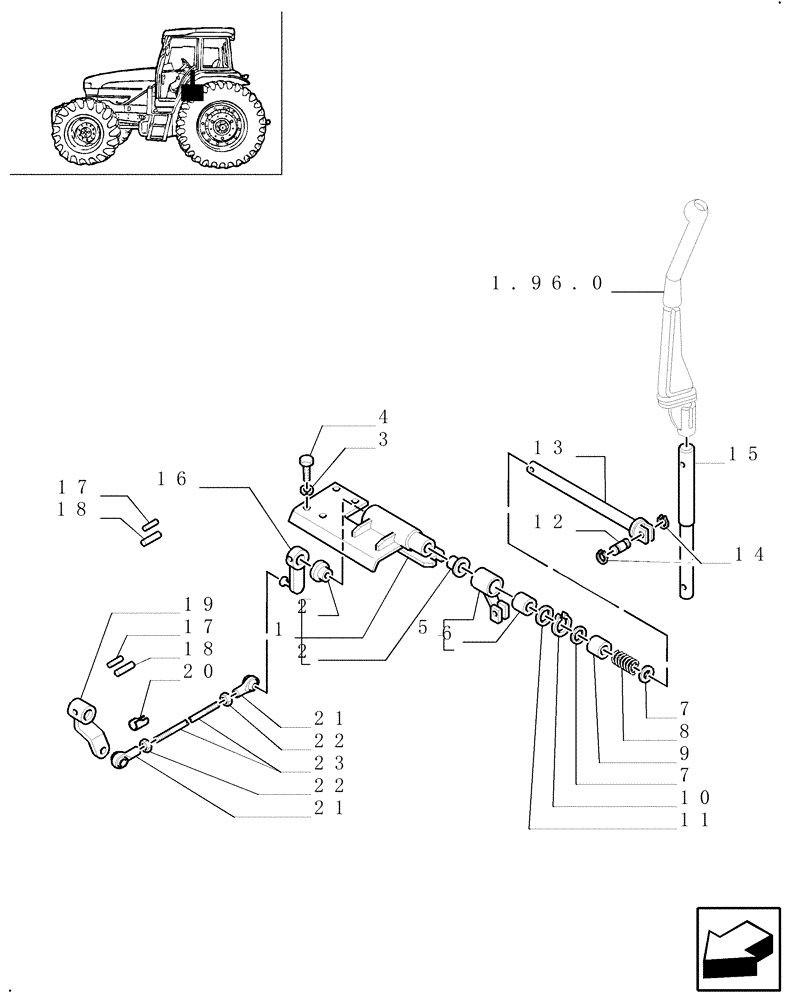

Запчасти Case IH JX100U (1.34.2) - REVERSER CONTROL - LEVERS & TIE-RODS (04) - FRONT AXLE & STEERING

1

5173762

SUPPORT

1шт.

2

5188075

BUSHING,22mm ID x 26.27mm OD x 26mm L

22X26X26

2шт.

3

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

5173579

SUPPORT

1шт.

6

44907939

BUSHING,31.99mm ID x 36mm OD x 30mm L

32X34X30

1шт.

7

5171256

SHIM,22.1mm ID x 38mm OD x 3mm Thk

22X38X3

2шт.

8

585488

SPRING

1шт.

9

5171257

SPACER,22.1mm ID x 27mm OD x 22mm L

22X27X22

1шт.

10

11068076

SNAP RING,M32, Ext

1шт.

11

44907953

WASHER, THRUST,32.2mm ID x 44mm OD x 3mm Thk

32X44X3

1шт.

12

5171255

PIN,8mm OD x 34mm L

2шт.

13

5173727

SHAFT

1шт.

14

11065676

SNAP RING,M8, Ext

4шт.

15

5173725

LEVER

1шт.

16

5171309

LEVER

2шт.

17

14607270

LOCK PIN,M8 x 40, Slotted

2шт.

18

14601670

LOCK PIN,M5 x 40, Slotted

2шт.

19

5174555

LEVER

1шт.

20

10125674

CLAMP,15mm

2шт.

21

10124611

BALL JOINT HEAD

2шт.

22

10791011

THIN NUT,Thin, M10 x 1.25, Cl 04

2шт.

23

5166698

TIE-ROD

1шт.
