Запчасти Case IH JX100U (1.33.2/09) - (VAR.296) (HI-LO) AND SYNCHRONIZED REVERS. GEAR - 30 KM/H WITH DIFFER. HYDR.LOCKI - SOLENOID VALVE (04) - FRONT AXLE & STEERING

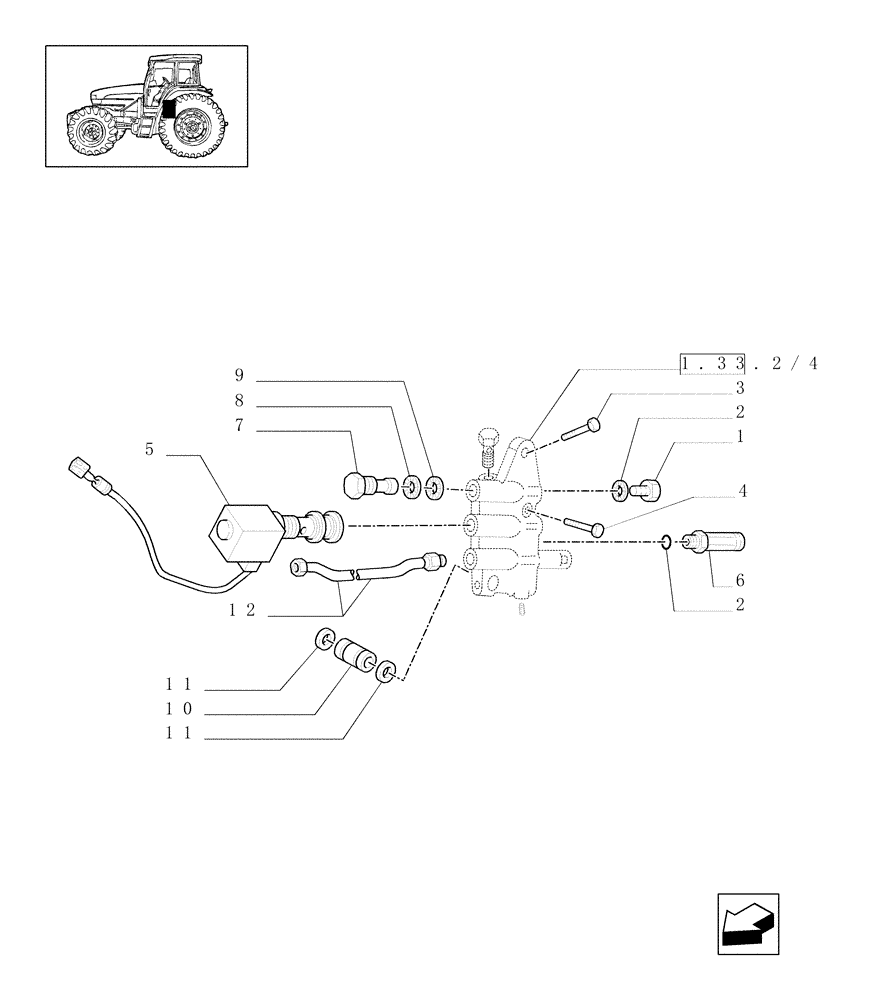

Схема запчастей Case IH JX100U - (1.33.2/09) - (VAR.296) (HI-LO) AND SYNCHRONIZED REVERS. GEAR - 30 KM/H WITH DIFFER. HYDR.LOCKI - SOLENOID VALVE (04) - FRONT AXLE & STEERING
10
1
11
5
4
8
11
1.33.2/4
3
2
2
6
7
9
12

Артикул

Название

Примечание

Количество

1

10119414

PLUG,M18 x 1.5 x 16

1шт.

2

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

3

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

4

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

5

5164627

SOLENOID

Diff. Lock

1шт.

6

5162919

EXTENSION

1шт.

7

5154967

PLUG,Hex R0.2

1шт.

8

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

9

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

10

5174926

PIPE COUPLING

1шт.

11

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

12

5173976

HYD TUBE

1шт.

Выбрано товаров: 12
