Запчасти Case IH JX100U (0.05.4[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (00) - GENERAL

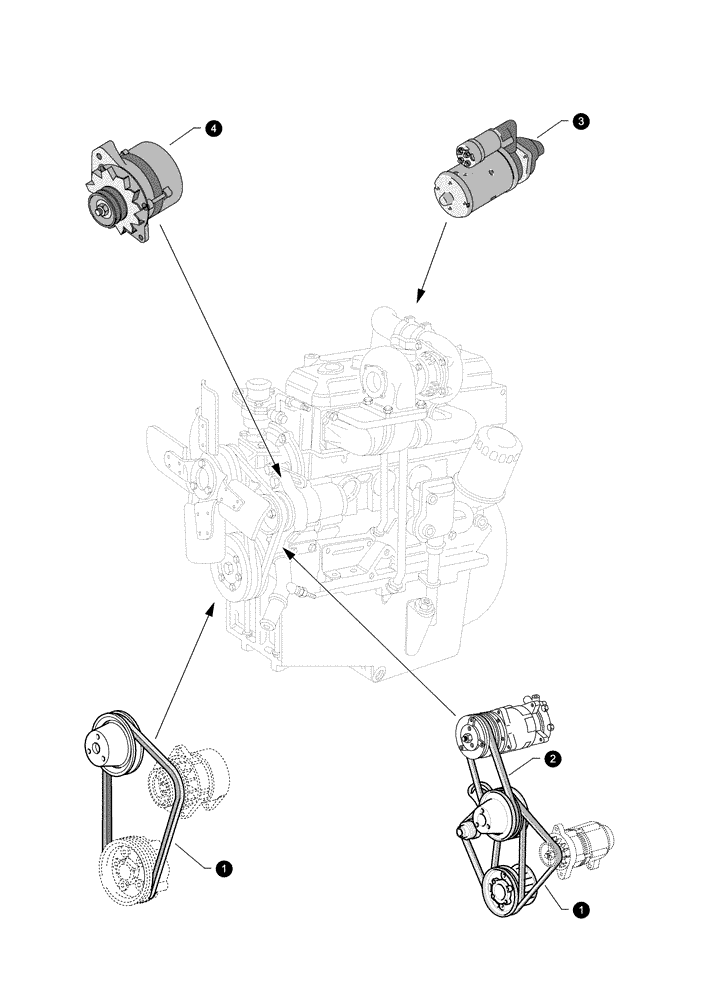

Схема запчастей Case IH JX100U - (0.05.4[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (00) - GENERAL
4
1
1
2
3

Артикул

Название

Примечание

Количество

1

4796327

BELT

Main Drive

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

Valid with VAR. 641, 623

1шт.

1

500369112

BELT

Fan Belt, W/Alternator

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

Valid with STD

1шт.

1

5140010

V-BELT,10.00 mm W x 1075.00 mm L

Main Drive

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

Valid with VAR. 641, 623

1шт.

1

98473705

BELT,1190.00 mm L

Fan Belt

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

Valid with STD

1шт.

2

5140009

V-BELT,10.00 mm W x 1025.00 mm L

Air Conditioner Compressor Belt

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR Models

1шт.

Valid with VAR. 641, 623

1шт.

2

5186233

BELT,960.00 mm L

Air Conditioner Compressor Belt

1шт.

Valid with JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

Valid with VAR. 641, 623

1шт.

3

5801441814

STARTER MOTOR

On Engine

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR Models

1шт.

4

8029593

On Engine

ALTERNATOR

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

4

500364130

ALTERNATOR,85A, W/ Pulley

On Engine

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

Выбрано товаров: 24
