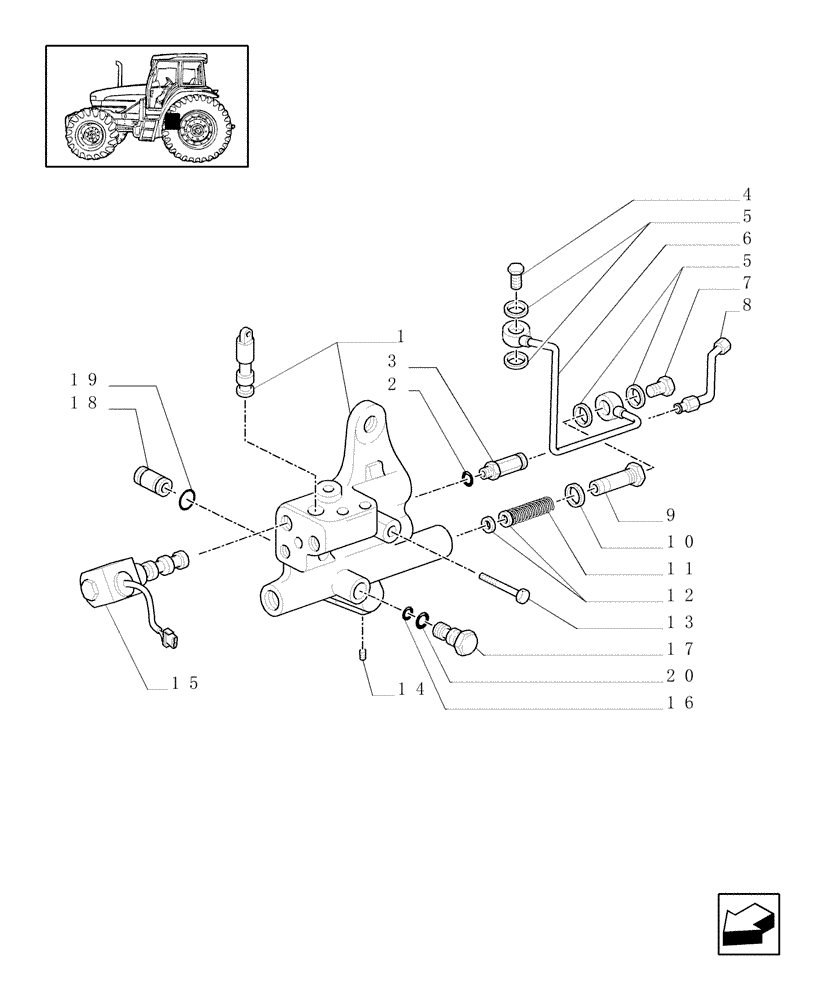

Запчасти Case IH JX100U (1.33.2[01]) - IDLER CONTROLS - 2WD - PIPES & SOLENOID VALVES (04) - FRONT AXLE & STEERING

1

5174902

SUPPORT

1шт.

2

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

3

5162919

EXTENSION

1шт.

4

11903817

BANJO BOLT

10 x 1.25 x 19

1шт.

5

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

4шт.

6

5169701

TUBE

1шт.

7

5169835

BANJO BOLT

1шт.

8

5162915

TUBE

1шт.

9

5196410

PLUG

1шт.

10

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

1шт.

11

5157119

SPRING,11.5mm x 127mm

1шт.

12

13550101

WASHER

2шт.

13

5166320

BOLT,Hex, M12 x 1.25 x 105mm, Cl 8.8

M12 x 1.25 x 105

1шт.

14

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

7шт.

15

5164627

SOLENOID

Diff. Lock

1шт.

16

14438185

O-RING,24mm ID x 3mm

1шт.

17

5174927

PLUG

1шт.

18

5174926

PIPE COUPLING

1шт.

19

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

20

14438085

O-RING,19.3mm ID x 2.4mm

1шт.
