Запчасти Case IH JX100U (1.33.1[02]) - IDLER GEARS - 4WD - PTO SHAFT (04) - FRONT AXLE & STEERING

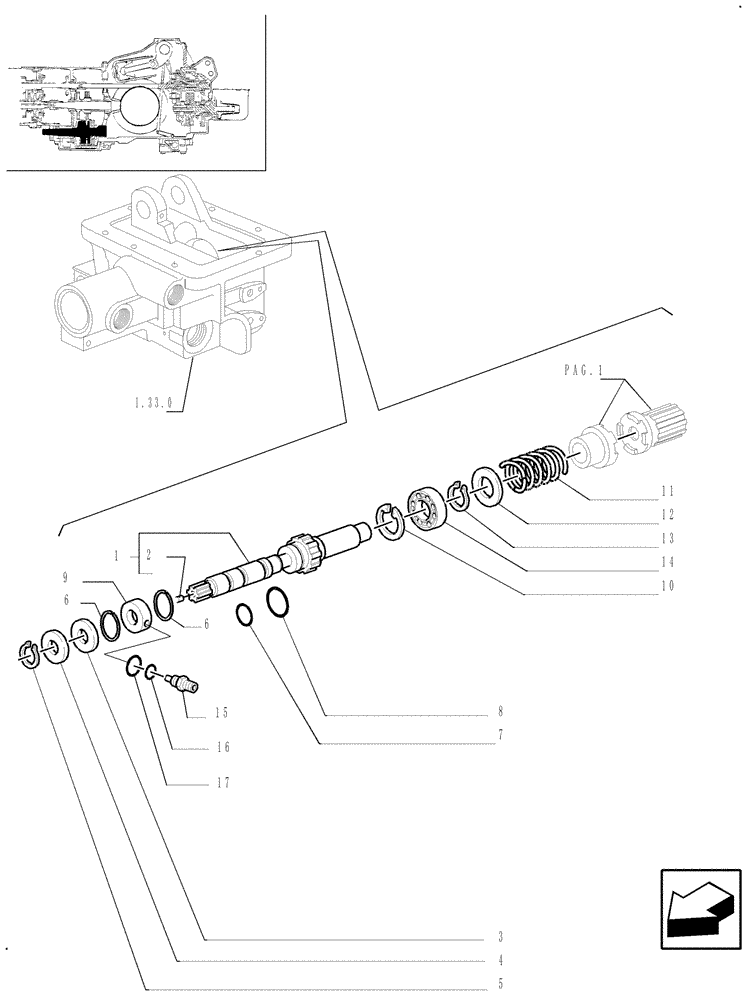

Схема запчастей Case IH JX100U - (1.33.1[02]) - IDLER GEARS - 4WD - PTO SHAFT (04) - FRONT AXLE & STEERING
8
1
14
13
10
1.33.0
4
16
5
11
7
6
2
15
17
pag.1
3
9
12
6

Артикул

Название

Примечание

Количество

1

5160586

DRIVEN SHAFT

1шт.

2

13789720

SET SCREW,Hex Skt, M8 x 12mm, Flat Pt

1шт.

3

5150370

SEAL,35mm ID x 80mm OD x 10mm Thk

35 x 80 x 10

1шт.

4

5150371

DISC,35.2mm ID x 80mm OD x 6mm Thk

1шт.

5

11067776

SNAP RING,M29, Ext

1шт.

6

5124049

LOCKING RING

, Serial Range: -1313718

2шт.

6

5195944

SEALING RING,31.8mm ID x 35mm OD x 2.5mm Thk

, Start Serial: 1313719

2шт.

7

5160580

GASKET,27.55mm ID x 35.12mm OD x 3.2mm Thk

D = 35

1шт.

8

5152665

SEAL,42.55mm ID x 50.12mm OD x 3.2mm Thk

42.6X50X3.2

1шт.

9

5181918

RING

, Serial Range: -1313718

1шт.

9

5197419

MANIFOLD

, Start Serial: 1313719

1шт.

10

11061976

SNAP RING,M80, Int

1шт.

11

5175670

SPRING

1шт.

12

5176902

RING

1шт.

13

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

14

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35X8X21

1шт.

15

5181968

HYD CONNECTOR,3/4" - 16 JIC x M18 x 1.5 ORB

L = 51mm

1шт.

16

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

17

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

Выбрано товаров: 19
