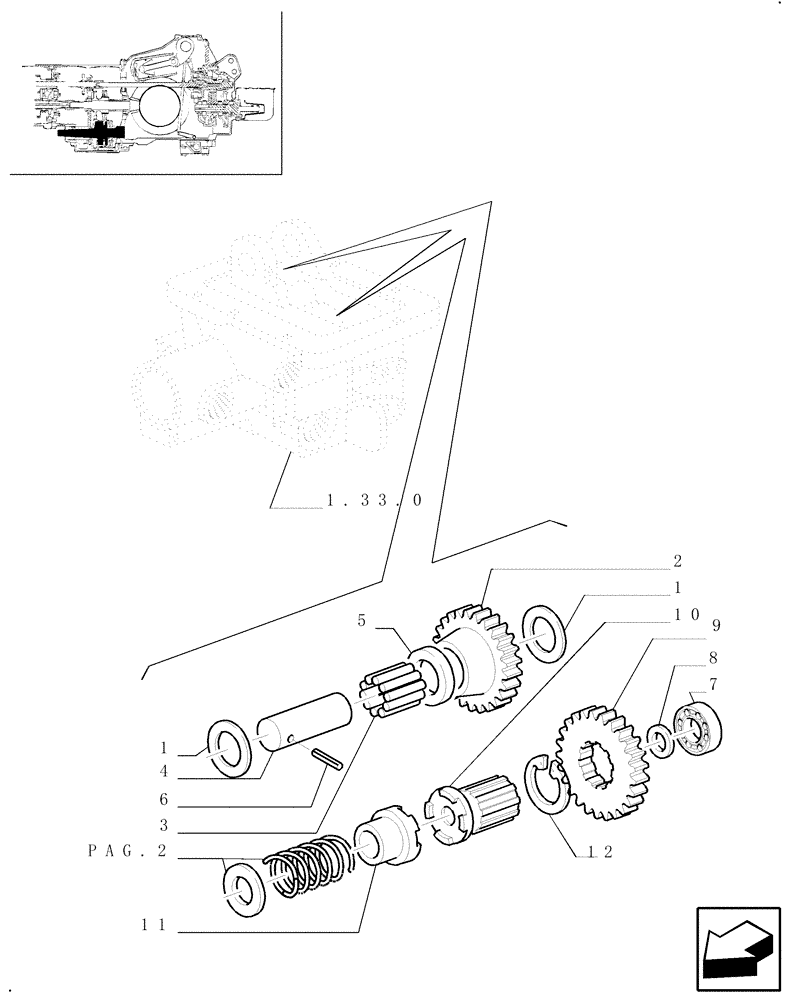

Запчасти Case IH JX100U (1.33.1[01]) - IDLER GEARS - 4WD - GEARS (04) - FRONT AXLE & STEERING

1

5115930

THRUST WASHER,27mm ID x 51.5mm OD x 0.8mm Thk

51.5X27X0.8

2шт.

2

5125011

IDLER GEAR

1шт.

3

5115937

NEEDLE BEARING,26.8mm ID x 40.8mm OD x 41mm W

1шт.

4

5123387

PIN,26.8mm OD x 85mm L

1шт.

5

5123389

SPACER,28mm ID x 40.7mm OD x 8mm L

40.7X28X8

1шт.

6

13943070

ROLL PIN,M6 x 50, Coiled

1шт.

7

23111990

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

30X72X19

1шт.

8

5160571

THRUST WASHER,30.25mm ID x 48mm OD x 4mm Thk

1шт.

9

5160584

DRIVEN GEAR

1шт.

10

5176904

SLEEVE,21T

1шт.

11

5176903

SLEEVE,21T

1шт.

12

11069776

SNAP RING,M58, Ext

1шт.
