Запчасти Case IH JX100U (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL

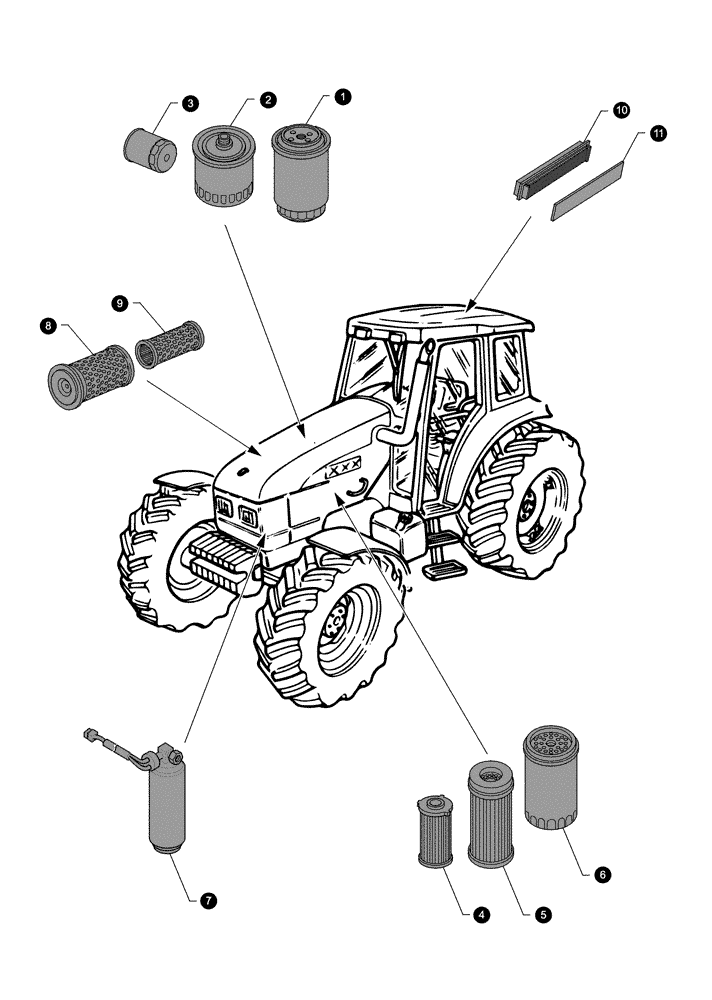

Схема запчастей Case IH JX100U - (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL
11
2
5
7
3
1
10
6
8
4
9

Артикул

Название

Примечание

Количество

1

84214564

FUEL FILTER

Spin On, w/Water Separator, Every 600 hours

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

2

84217953

FUEL FILTER

Fuel sedimenting device, Every 600 hours

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

3

84221215

ENGINE OIL FILTER

Spin On , Every 300 hours

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

4

5194879

ELEMENT

Element, Power shuttle transmission, with Hi-Lo, Every 600 hours

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

5

1909143

FILTER

Steering direction servocontrol - 2WD, Every 600 hours

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR Models

1шт.

6

84592273

FILTER

Power Steering 2WD & 4WD, Every 600 hours

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

7

5165615

RECEIVER-DRYER

Primary Cartridge, Air Conditioning, Every 300 hours

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

8

1931160

ELEMENT

Self-cleaning, Every 300 hours

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR Models

1шт.

8

1931161

ELEMENT

Every 300 hours

1шт.

Valid with JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

8

1931166

AIR FILTER

Every 300 hours

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR Models with the variante 199

1шт.

8

1931168

AIR FILTER

Self-Cleaning, Every 300 hours

1шт.

Valid with JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models with the variante 199

1шт.

9

1930588

AIR FILTER

Safety, self-cleaning, Every 300 hours

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR Models

1шт.

9

1931167

AIR FILTER

Safety, self-cleaning, Every 300 hours

1шт.

Valid with JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

9

1931164

AIR FILTER

Safety, Every 300 hours

1шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR Models with the variante 199

1шт.

9

1931169

AIR FILTER

Safety, Every 300 hours

1шт.

Valid with JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models with the variante 199

1шт.

10

5196842

CAB FILTER

Primary, Intake, Every 1200 hours

2шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

11

82033107

AIR FILTER

Secondary, Intake, Every 1200 hours

2шт.

Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models

1шт.

Выбрано товаров: 34
