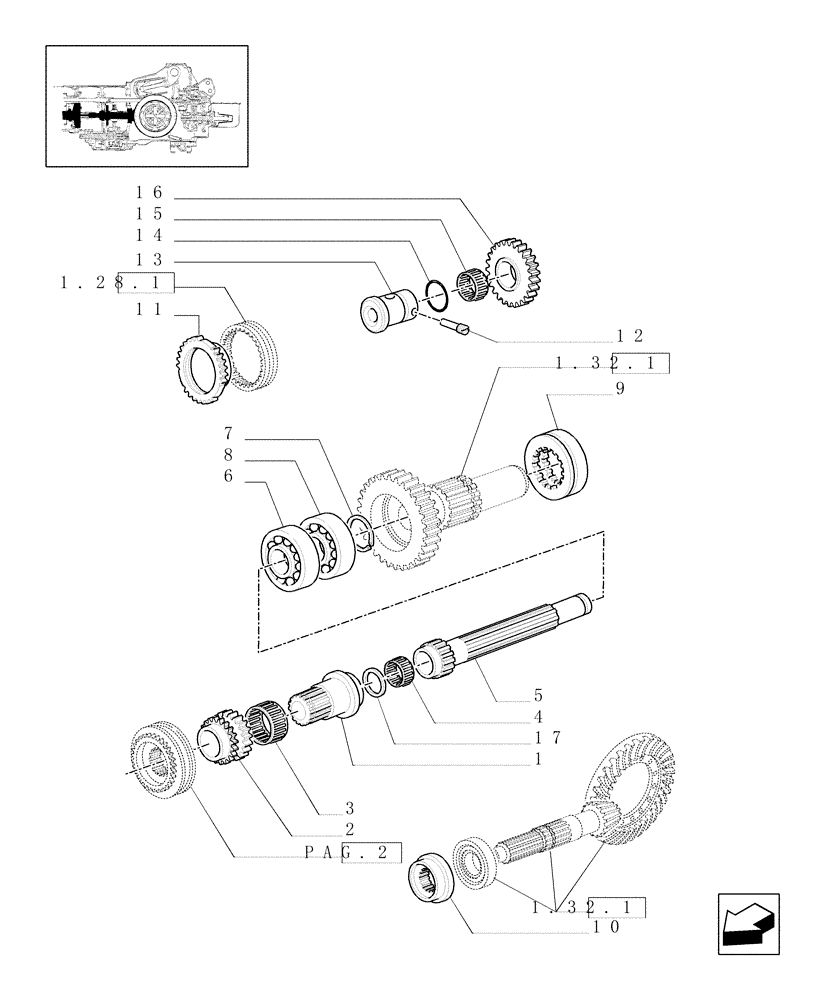

Запчасти Case IH JX100U (1.28.1/02[03]) - (VAR.113-119-119/1) SYNCHRONIZED CREEPER AND REVERSER UNIT - SHAFTS AND GEARS (03) - TRANSMISSION

1

5160665

COUPLING

1шт.

2

5160664

DRIVEN GEAR

1шт.

3

5149885

ROLLER CAGE BEARING,75mm ID x 81mm OD x 30mm W

75X81X30

1шт.

4

5128943

NEEDLE BEARING,40mm ID x 45mm OD x 27mm W

40X45X27

1шт.

5

5160658

MAIN SHAFT

1шт.

6

28996330

BALL BEARING,45mm ID x 85mm OD x 19mm W

45X85X19

1шт.

7

11068876

SNAP RING,M40, Ext

1шт.

8

5147070

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

40X80X18

1шт.

9

5125880

SPLINED COUPLING,17T

JX70U, JX80U

1шт.

10

5128016

SPACER,10T

JX70U, JX80U

1шт.

11

5138210

SYNCHRONIZER,24T

JX70U, JX80U

4шт.

12

5161823

ROLL PIN

1шт.

13

5161821

PIN

1шт.

14

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

15

5117559

NEEDLE BEARING CAGE,32mm ID x 38mm OD x 26mm W

32X38X26

1шт.

16

5172214

GEAR

VAR. 113-119

1шт.

17

5160672

SHIM,51mm ID x 58.5mm OD x 2.7mm Thk

1шт.

17

5160673

SHIM,51mm ID x 58.5mm OD x 2.9mm Thk

1шт.

17

5160674

SHIM,51mm ID x 58.5mm OD x 3.1mm Thk

1шт.

17

5160675

SHIM,51mm ID x 58.5mm OD x 3.3mm Thk

1шт.

17

5162094

SHIM,51mm ID x 58.5mm OD x 3.5mm Thk

1шт.

17

5162095

SHIM,51mm ID x 58.5mm OD x 3.7mm Thk

1шт.
