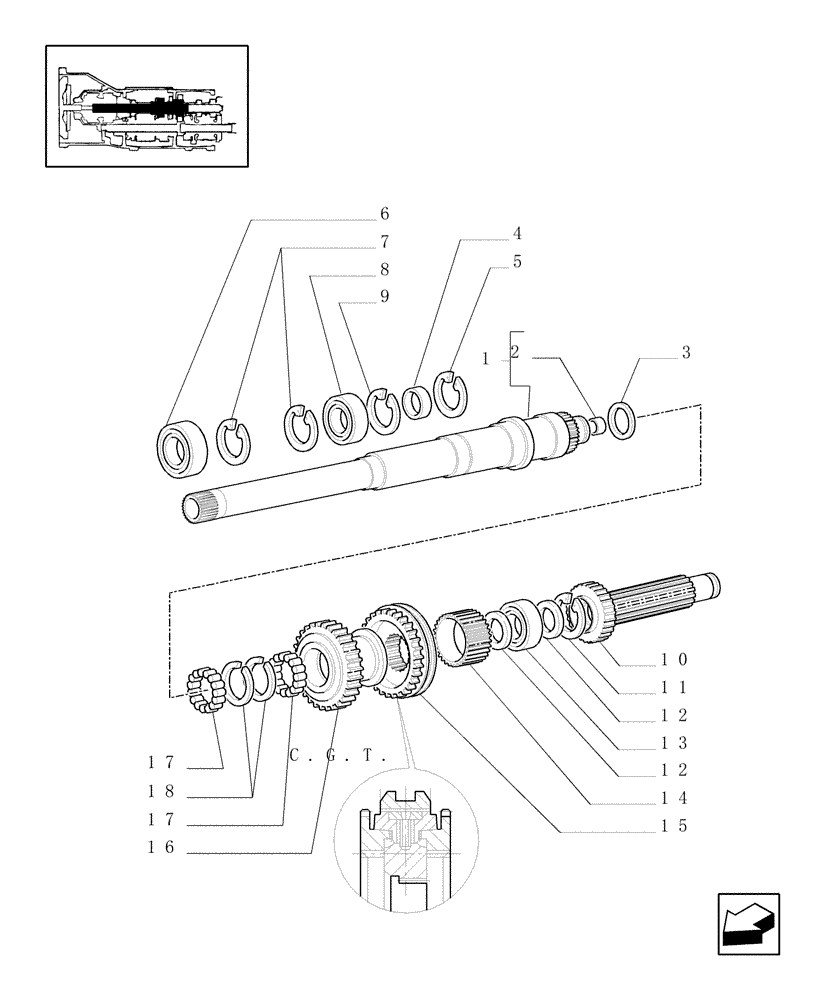

Запчасти Case IH JX100U (1.28.1[03]) - TRANSMISSION GEARS - GEARBOX REVERSE CLUTCH SHAFT (03) - TRANSMISSION

1

5164529

SHAFT

708mm,JX100U

1шт.

1

5167151

SHAFT

648mm, JX90U

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

25X28.53X18

1шт.

3

5164517

RING

68X84

1шт.

4

5164500

SEAL,50mm ID x 90mm OD x 10mm Thk

50X9OX10

1шт.

5

11069376

SNAP RING,M50, Ext

1шт.

6

24905130

BALL BEARING,45 mm ID x 75 mm OD x 16 mm

45X75X16

1шт.

7

11062476

SNAP RING,M90, Int

2шт.

8

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

50 x 90 x 20 mm

1шт.

9

11062176

CIRCLIP,M85, Int

1шт.

10

5161817

MAIN SHAFT

1шт.

11

11070876

CIRCLIP,M80, Ext

1шт.

12

5143461

WASHER,40.1mm ID x 56mm OD x 3mm Thk

2шт.

13

24905120

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

40X68X15

1шт.

14

5143460

SLEEVE

1шт.

15

5186629

SYNCHRONIZER

Forward/Reverse

1шт.

16

5164583

DRIVEN GEAR

Reverse Drive Gear 26 Teeth

1шт.

17

5137225

NEEDLE BEARING CAGE,52mm ID x 57mm OD x 17mm W

2шт.

18

5137224

WASHER,54.7mm ID x 59.3mm OD x 1.5mm Thk

1шт.
