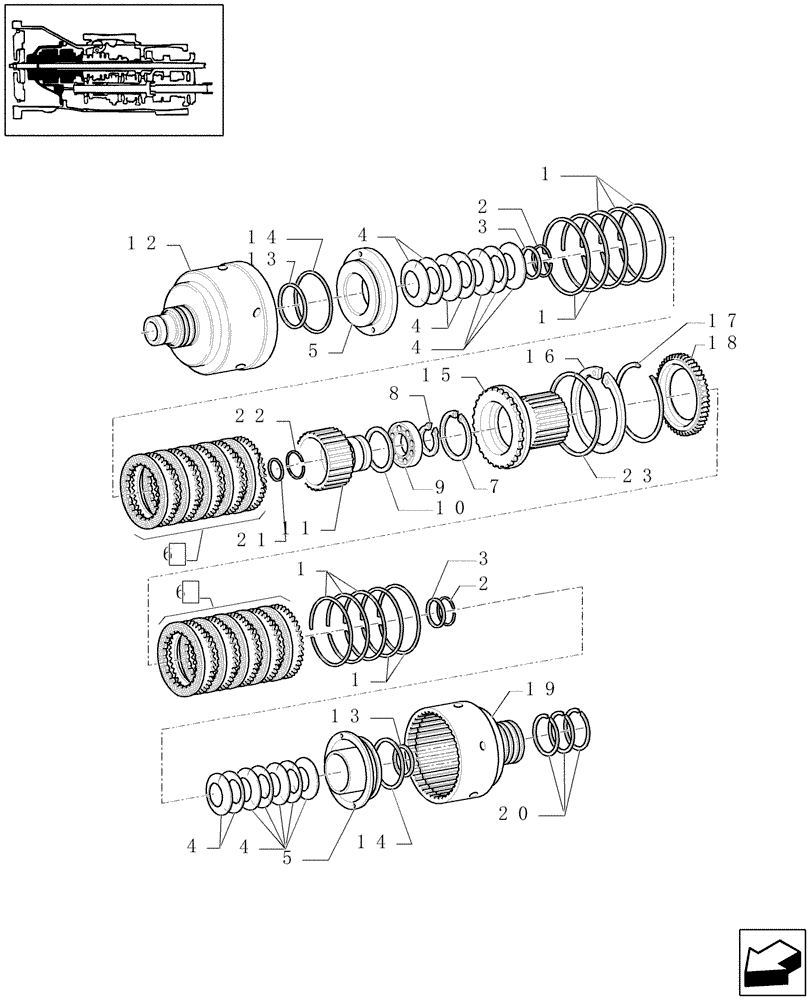

Запчасти Case IH JX100U (1.27.3/02[01]) - (VAR.748/1) 24+24 40 KM/H, HI-LO, POWER SHUTTLE, HYDRAULIC P.T.O. -CLUTCH AND PARTS (03) - TRANSMISSION

1

5166536

SPRING,173mm OD x 1.27mm Thk

10шт.

2

5162253

CIRCLIP,2mm Thk

D=68

2шт.

3

5162263

RETAINER CUP,68mm ID x 78mm OD x 3mm Thk

2шт.

4

5162331

SPRING

14шт.

5

5171202

PISTON

2шт.

6

5185943

KIT

2шт.

7

11062476

SNAP RING,M90, Int

1шт.

8

11069576

SNAP RING,M55, Ext

1шт.

9

28042510

BALL BEARING,55mm x 90mm x 18mm

55X90X18

1шт.

10

5181842

THRUST WASHER,55mm ID x 83mm OD x 1mm Thk

1шт.

11

5181838

HUB

1шт.

12

5181843

HOUSING

1шт.

13

5162398

SEALING RING,82.55mm ID x 90mm OD x 3.2mm Thk

SEALRING

2шт.

14

5143775

SEAL,128.55mm ID x 136.06mm OD x 3.2mm Thk

135 x 128.5 x 3.2

2шт.

15

5186183

HUB

1шт.

16

11078676

SNAP RING,M175, Int

1шт.

17

5122844

SNAP RING,168mm, 2mm Thk, Int

D=168

1шт.

18

5186182

CLUTCH PLATE

1шт.

19

5181851

HOUSING

1шт.

20

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

SEALRING

3шт.

21

5173674

GASKET,35mm ID x 42mm OD x 4mm Thk

1шт.

22

5124473

SNAP RING,1.5mm Thk, Int

D = 42

1шт.

23

5190247

SEAL,Locking, 111.45mm ID x 119.25mm OD x 3.8mm Thk

111.45X119.25X3.8

1шт.
