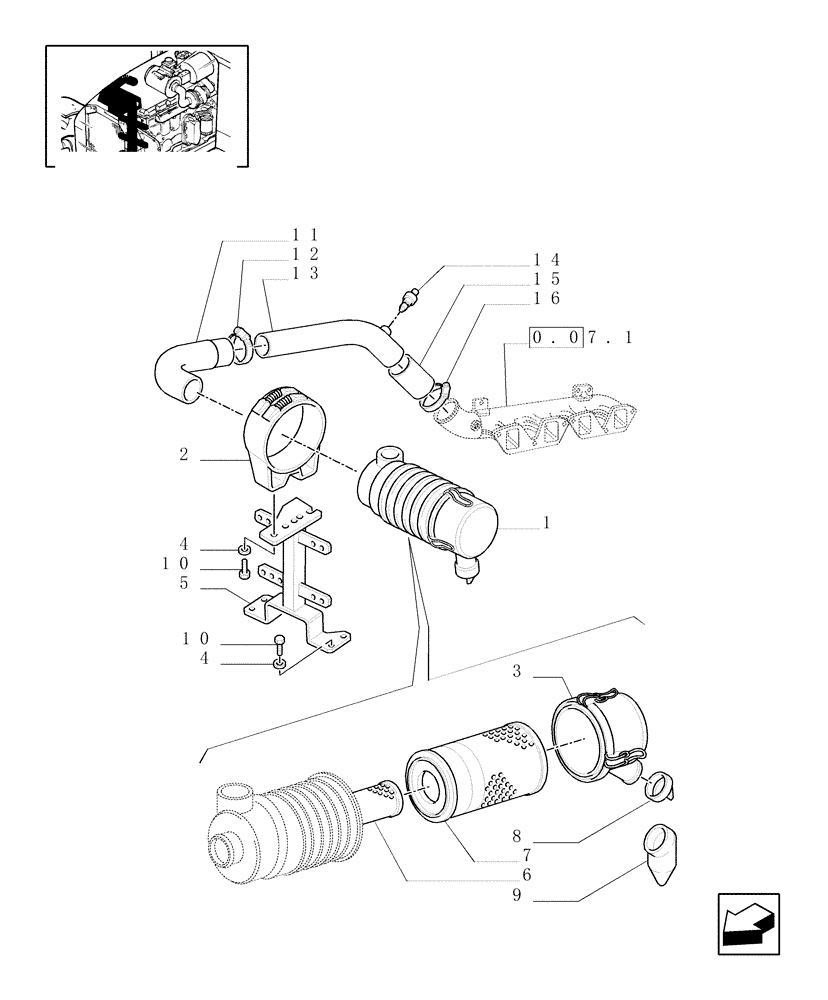

Запчасти Case IH JX100U (1.19.1[01]) - DRY AIR CLEANER PIPES (02) - ENGINE EQUIPMENT

1

5150017

FILTER ASSY

JX90U, JX100U

1шт.

1

5157064

AIR FILTER

JX70U, JX80U

1шт.

2

5155242

SUPPORT

JX90U, JX100U

1шт.

2

5166603

SUPPORT

JX70U, JX80U

1шт.

3

9970477

COVER

JX70U, JX80U

1шт.

3

9970478

COVER

JX90U, JX100U

1шт.

4

11198574

BELLEVILLE WASHER,Belleville, M10.5

6шт.

5

5182808

SUPPORT

1шт.

6

1930588

AIR FILTER

JX70U, JX80U

1шт.

6

1931167

AIR FILTER

JX90U, JX100U

1шт.

7

1931160

ELEMENT

JX70U, JX80U

1шт.

7

1931161

ELEMENT

JX90U, JX100U

1шт.

8

79099440

SEALING STRIP

JX70U, JX80U

1шт.

9

9966096

DUST VALVE

JX90U, JX100U

1шт.

10

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

11

5166605

FLEXIBLE HOSE

JX70U, JX80U

1шт.

12

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

JX70U, JX80U

2шт.

13

5166606

AIR INTAKE TUBE

JX70U, JX80U

1шт.

14

5138819

INDICATOR

JX70U, JX80U

1шт.

15

5166604

HOSE,60.00 mm ID, 66.00 mm ID x 56.50 mm

JX70U, JX80U

1шт.

16

13000990

COLLAR,60mm - 80mm, Worm Gear

JX70U, JX80U

2шт.
