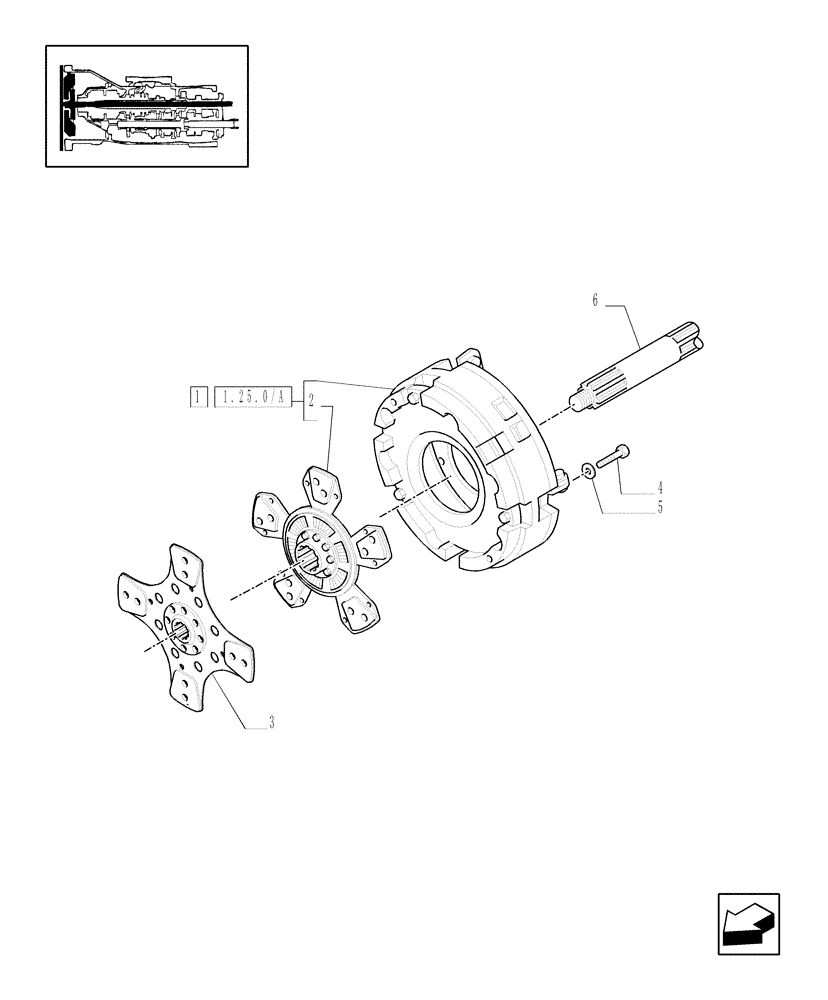

Запчасти Case IH JX1095N (1.25.0[01]) - CLUTCH - C5949 (03) - TRANSMISSION

1

47134905

CLUTCH

Assy.

1шт.

2

47134906

CLUTCH PLATE,280mm OD

G/Box

1шт.

2

47134906R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate

1шт.

2

47134906C

CORE-CLUTCH PLATE

Return Part Number

1шт.

2

87732495R

REMAN-CLUTCH DISC

JX1095N TRACTOR, G/Box (12/04-), Reman for New PN 47134906

1шт.

2

87732495C

CORE-CLUTCH DISC

Return Part Number

1шт.

3

47134874

CLUTCH PLATE,280mm OD

PTO

1шт.

3

47134874R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate

1шт.

3

47134874C

CORE-CLUTCH PLATE

Return Part Number, PTO, JX1095N

1шт.

4

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

6шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

6

5177146

SHAFT

1шт.
