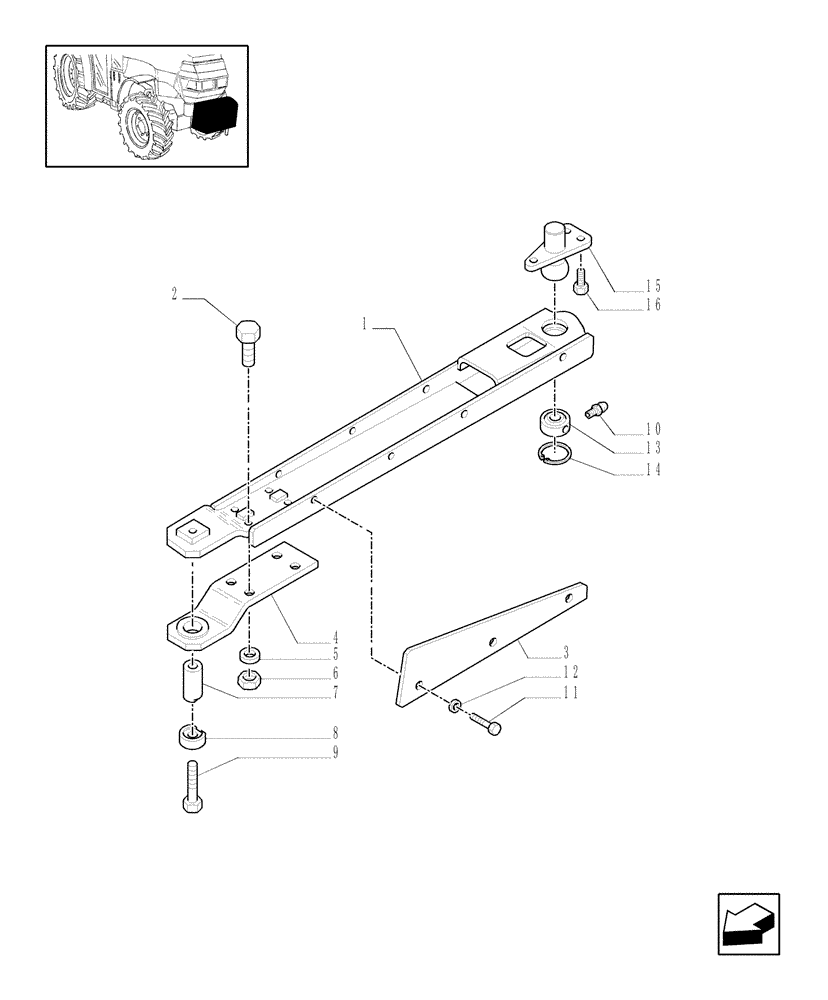

Запчасти Case IH JX1095N (1.21.1/02[02]) - 4WD FRONT AXLE SUPPORT (03) - TRANSMISSION

1

5189855

TIE-ROD

1шт.

2

11394321

BOLT,Hex, M14 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.

3

47123851

SHIELD

2шт.

4

5180639

PLATE

1шт.

5

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

4шт.

6

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

4шт.

7

5180637

PIN,40mm OD x 74.7mm L

1шт.

8

5180401

SPACER

1шт.

9

16332621

BOLT,Hex, M14 x 1.5 x 100mm

1шт.

10

87414

LUBE NIPPLE,1/4" - 28

1шт.

11

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

12

11197874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 2.2mm Thk

6шт.

13

5177939

BUSHING,49mm ID x 70mm OD x 23.5mm L

1шт.

14

5177940

SNAP RING,3mm Thk, Int

1шт.

15

5185722

SUPPORT

1шт.

16

16336534

BOLT,Hex, M18 x 1.5 x 40mm

3шт.
