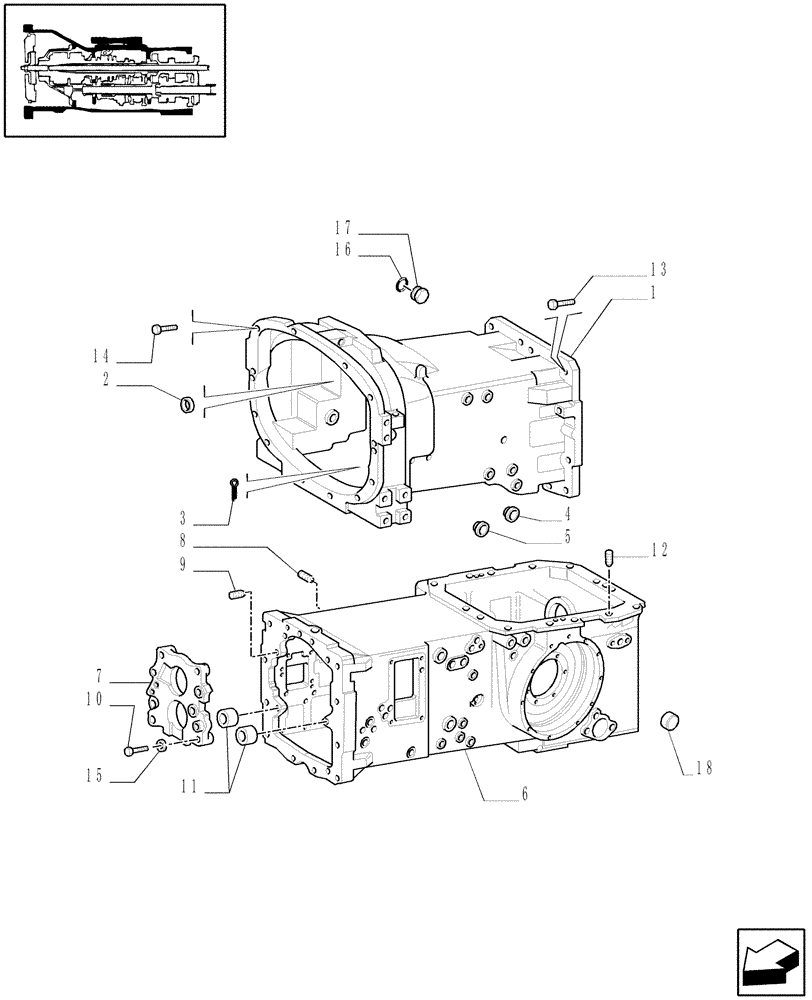

Запчасти Case IH JX1095N (1.21.0[01]) - TRACTOR BODY (03) - TRANSMISSION

1

5189829

CLUTCH HOUSING

, Serial Range: -C5431

1шт.

JX1095V, (JX1095N 2WD)

1шт.

1

87555871

TRANSMISSION HOUSING

, Start Serial: D5431

1шт.

JX1095V, (JX1095N 2WD)

1шт.

1

5185668

TRANSMISSION HOUSING

1шт.

JX1095N 4WD

1шт.

2

5133142

BUSHING,24.05mm ID x 27mm OD x 30mm L

4шт.

3

10798204

COTTER PIN,M6.3 x 32

1шт.

4

14329401

PLUG,M45, Tapered

1шт.

JX1095N 4WD

1шт.

5

14328601

PLUG,M18, Tapered

3шт.

6

47123980

TRANSMISSION HOUSING

, Serial Range: -HJC059179

1шт.

6

87346023

TRANSMISSION HOUSING

, Serial Range: HJC059180-HJC088613

1шт.

6

87353887

TRANSMISSION HOUSING

HJC088614 to

1шт.

7

5183692

COVER

1шт.

8

5153109

DOWEL,10mm OD x 15mm L

M10 x 15

6шт.

9

4988170

PIN,10mm OD x 20mm L

M10 x 20

12шт.

10

14331721

HEX SOC SCREW,M12 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

10

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

11

44908048

BUSHING,16mm OD x 14mm L

DIA=16

2шт.

12

5119529

DOWEL,15mm OD x 22mm L

15x22

2шт.

13

15540631

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd

9шт.

13

14331330

HEX SOC SCREW,M12 x 1.25 x 40mm, Cl 10.9, Full Thd

3шт.

14

15540734

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

11шт.

14

15541031

BOLT,Hex, M12 x 1.25 x 60mm, Cl 10.9

1шт.

15

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

16

4858609

WASHER,Brass

16x22

1шт.

17

10300714

PLUG,M16 x 1.5 x 14

1шт.

18

5171614

PLUG,27mm OD

DIA=27 (PTO), VAR.271-297

1шт.
