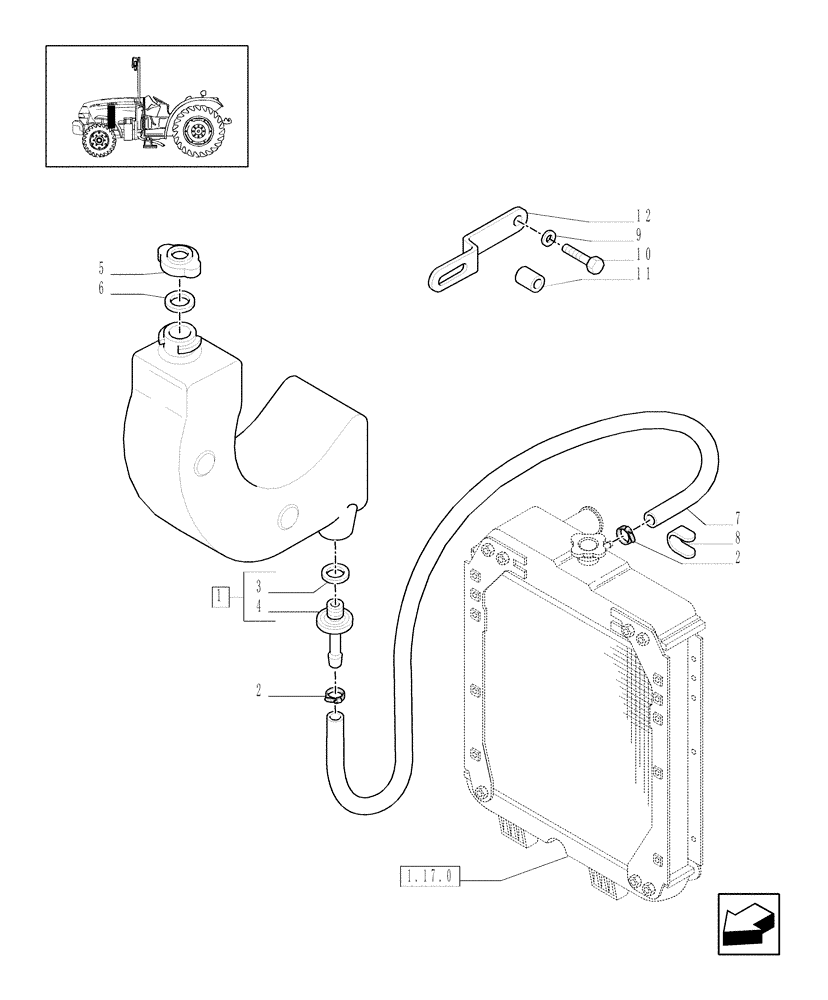

Запчасти Case IH JX1095N (1.17.1) - COOLING EXPANSION TANK (02) - ENGINE EQUIPMENT

1

5192399

TANK

1шт.

2

10186590

CLAMP,11mm - 13mm

2шт.

3

14462889

O-RING,18.64mm ID x 3.53mm Width

1шт.

4

5191152

FITTING

1шт.

5

4274034

CAP

1шт.

6

4153008

SEAL

SEALRING

1шт.

7

19053181

FLEXIBLE HOSE

7x12

1шт.

8

10450190

CLAMP,10mm, Coat, 9mm Bolt Hole, P Type

10 mm dia.

2шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

10

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

10

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

10

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.

11

13604111

SPACER,6.5mm ID x 15mm OD x 10mm L

6.5x15x10

1шт.

12

5192524

BRACKET

2шт.
