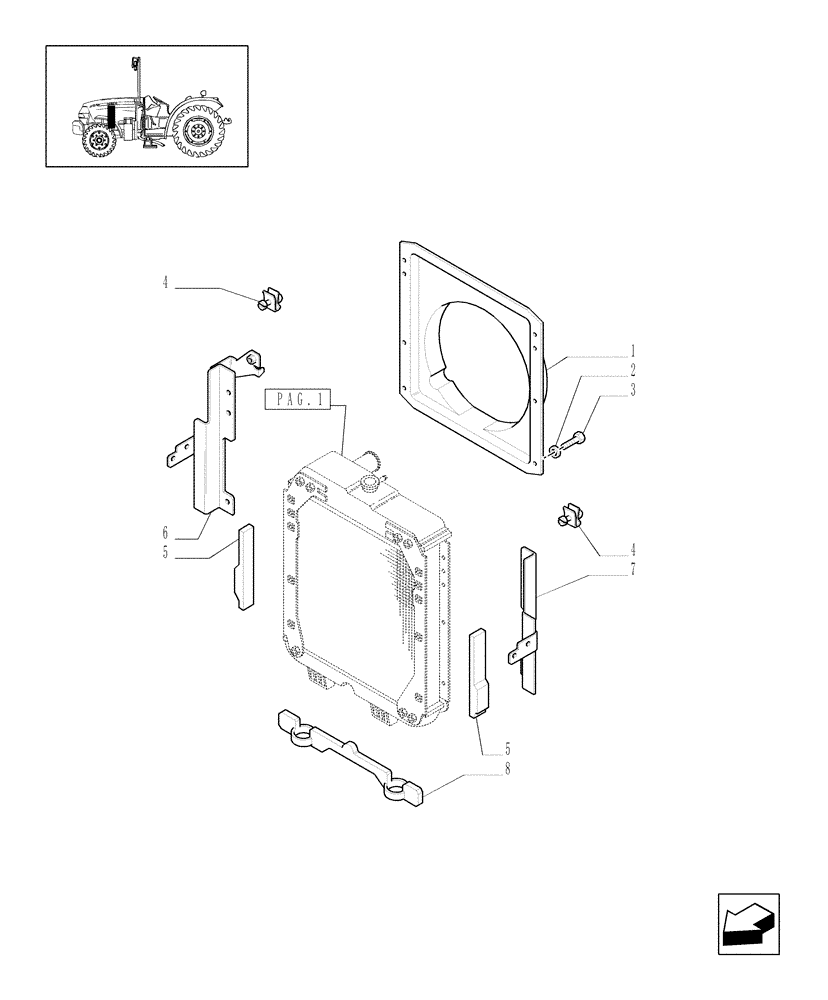

Запчасти Case IH JX1095N (1.17.0[02]) - RADIATOR - RADIATOR CONVEYOR (02) - ENGINE EQUIPMENT

1

5189209

SHROUD

1шт.

2

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

8шт.

3

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

8шт.

4

5174673

FASTENER,12mm OD

JX1095V

4шт.

5

44914549

SEAL

RH, JX1095V

1шт.

5

5193078

SEAL

LH, JX1095V

1шт.

5

5189372

SEAL

LH, VAR.271-297-826, JX1095V

1шт.

5

5176663

SEAL

JX1095N

2шт.

6

5189112

BRACKET

RH, JX1095V

1шт.

7

5189113

BRACKET

LH, JX1095V

1шт.

8

5188988

GUARD

JX1095V

1шт.

8

5189085

SEAL

JX1095N

1шт.
