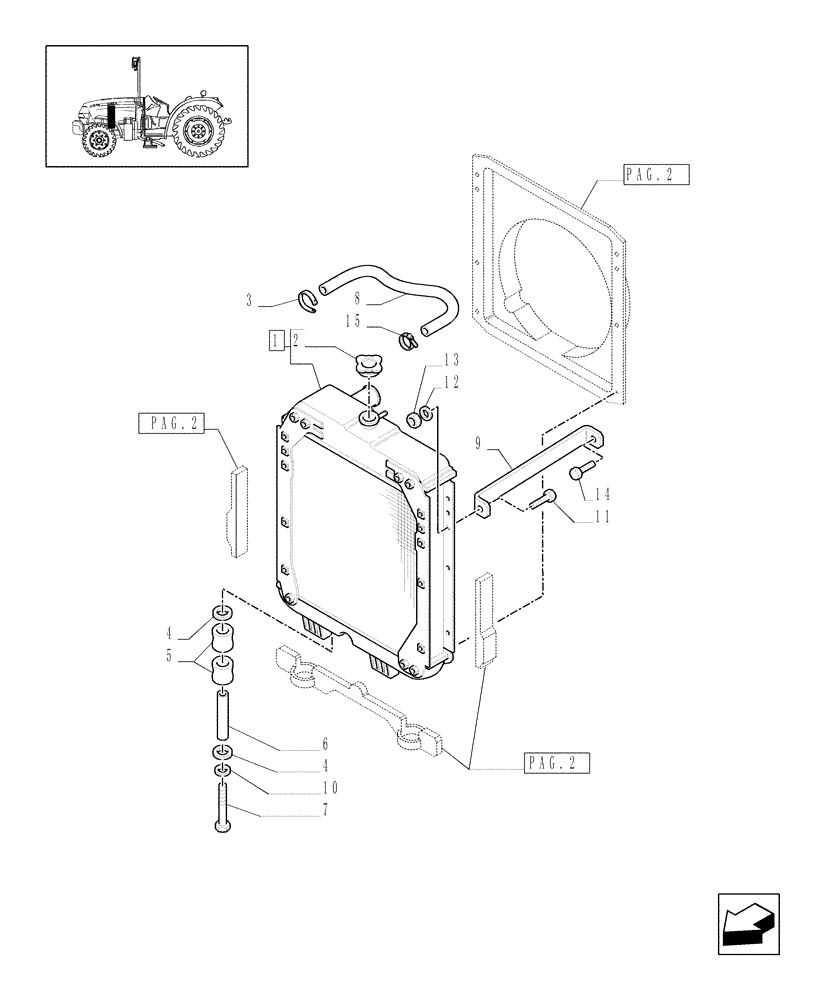

Запчасти Case IH JX1095N (1.17.0[01]) - RADIATOR - RADIATOR CONVEYOR (02) - ENGINE EQUIPMENT

1

5172926

RADIATOR

Assy.

1шт.

2

4999682

RADIATOR CAP,Vented

1шт.

3

10450190

CLAMP,10mm, Coat, 9mm Bolt Hole, P Type

10 mm dia.

2шт.

4

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

5

5108225

RUBBER MOUNTING

4шт.

6

5102703

SPACER,11mm ID x 15mm OD x 63mm L

11x15x63

2шт.

7

15971624

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

2шт.

8

19053181

FLEXIBLE HOSE

L=85

1шт.

9

5189071

BRACKET

1шт.

10

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

2шт.

11

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

12

11197874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 2.2mm Thk

1шт.

13

43362

NUT,M8 x 1.25, Cl 10

1шт.

14

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

1шт.

15

10186590

CLAMP,11mm - 13mm

1шт.
