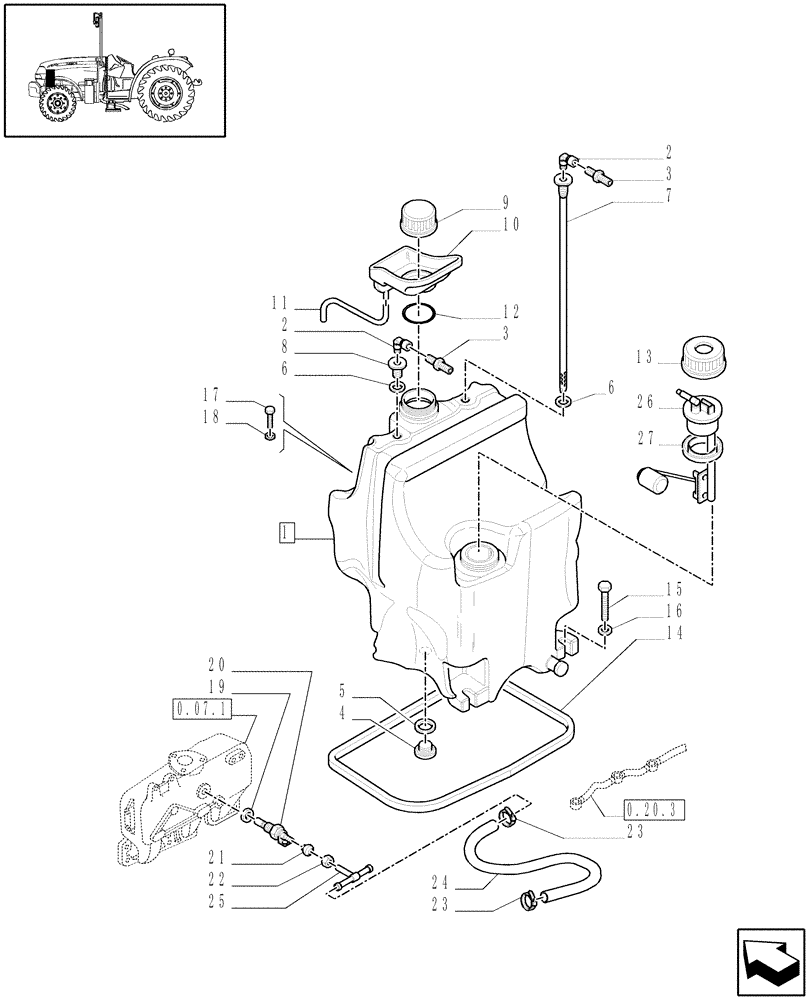

Запчасти Case IH JX1095N (1.14.0) - FUEL TANK - FUEL LINES - THERMOSTARTER AUXILIARY DEVICE (02) - ENGINE EQUIPMENT

1

47134193

FUEL TANK

Assy., Incl. Ref. 2 Through 10, 12, 13, 26, 27

1шт.

2

5184539

HYD CONNECTOR,1/4" GAS - 1/4" GAS - 90°

2шт.

3

5186203

HYD CONNECTOR,M1/4-9

2шт.

4

82019464

PLUG,3/4" GAS x 13.5mm L

1шт.

5

70926843

O-RING,-125, Cl 8, 1.299" ID x .103" Thk

1шт.

6

14463181

O-RING,921" ID x 0.139" Width

2шт.

7

44914503

DIPSTICK

1шт.

8

5186758

REDUCER,3/8"

1шт.

9

44907408

PLUG

1шт.

10

44914527

PAN

1шт.

11

5190421

RIGID TUBE

1шт.

12

76046537

SEAL,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

1шт.

13

82002171

RING NUT

1шт.

14

44905325

SUPPORT LINING

3шт.

15

15888724

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

2шт.

15

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

15

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

16

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

16

13579601

WASHER,10.2mm ID x 20mm OD x 0.5mm Thk

10x30

2шт.

17

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

18

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

19

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.

20

5161845

THERMOSTART

1шт.

21

5122008

GROMMET

1шт.

22

5122009

NUT

1шт.

23

10186590

CLAMP,11mm - 13mm

1шт.

24

19053182

HOSE

7x12

1шт.

24

5180490

TUBE

6.5x8.5, L=250, JX1095N

1шт.

25

5159818

HYD CONNECTOR

1шт.

26

5191772

LEVEL GAUGE

1шт.

27

83998804

GASKET,4mm Thk

1шт.
