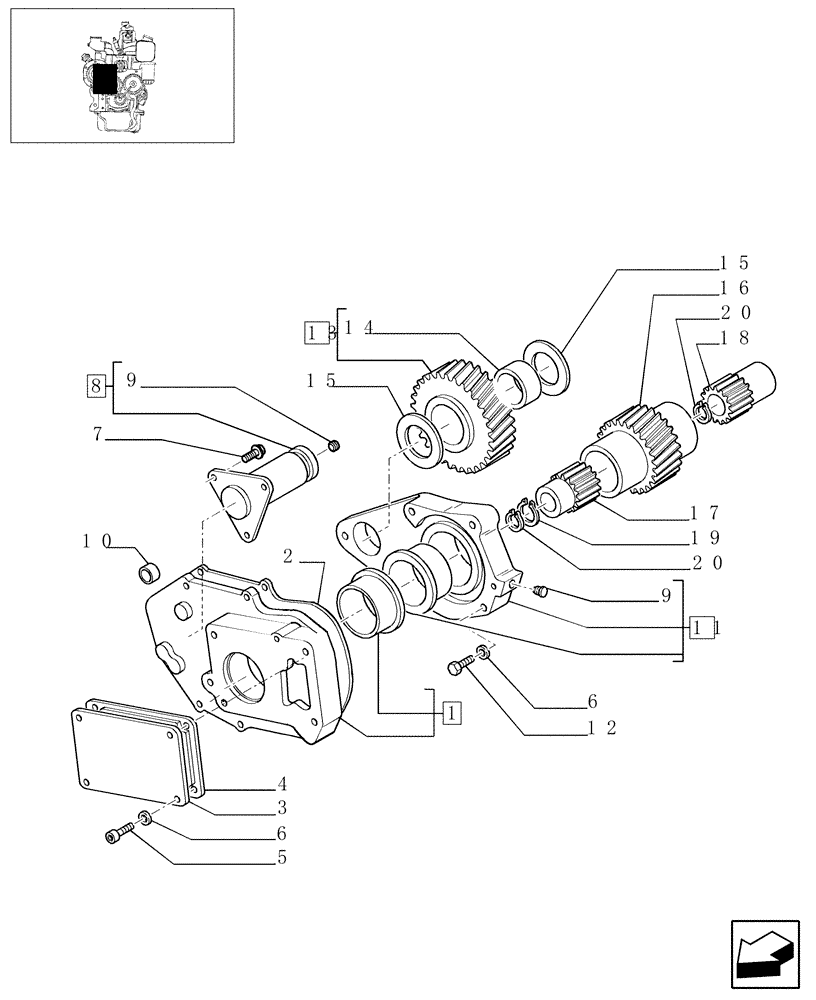

Запчасти Case IH JX1095N (0.35.0) - BELT PULLEY DRIVE & COVER (01) - ENGINE

1

500360996

SUPPORT

Assy.

1шт.

2

99440822

GASKET

1шт.

3

500315902

COVER

1шт.

4

504092108

GASKET

1шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.

7

98401723

BOLT,Hex, M8 x 1.25 x 12mm

M10 x 1.25 x 15 x 40

3шт.

8

99441934

PIN

Assy.

1шт.

9

16987501

PLUG

2шт.

10

99442051

DOWEL

1шт.

11

500357475

SUPPORT

Assy.

1шт.

12

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

12

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

13

500397567

GEAR

Assy.

1шт.

14

500397566

BUSHING

1шт.

15

99442102

RING

2шт.

16

99440804

SHAFT

1шт.

17

99440824

UNIVERSAL JOINT

MM.35

1шт.

18

500361016

UNIVERSAL JOINT

MM.45

1шт.

19

17084976

LOCKING RING

1шт.

20

17084476

CIRCLIP

2шт.
