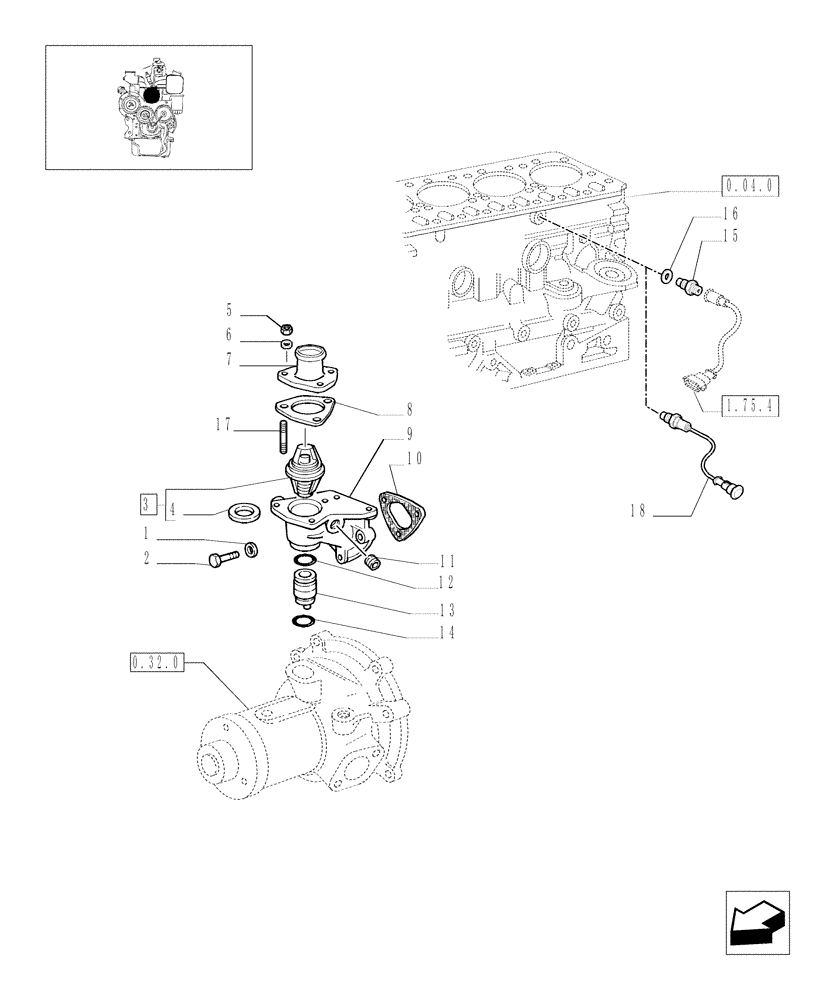

Запчасти Case IH JX1095N (0.32.6) - THERMOSTAT (01) - ENGINE

1

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

3шт.

2

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

2шт.

2

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

3

98463637

THERMOSTAT

Assy.

1шт.

4

7303173

GASKET,4.3mm Thk

1шт.

5

43362

NUT,M8 x 1.25, Cl 10

3шт.

6

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

3шт.

7

4661543

HOUSING,Thermostat

1шт.

8

98482590

GASKET

1шт.

9

99440788

BODY

1шт.

10

98400784

GASKET,0.5mm Thk

1шт.

11

500378047

PLUG

1шт.

12

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

1шт.

13

98415712

HYD CONNECTOR

1шт.

14

14463281

O-RING,0.984" ID x 0.139" Width

1шт.

15

4171667

SENSOR

Coolant, Temperature, Serial Range: -HJC023412

1шт.

16

4858609

WASHER,Brass

1шт.

17

13517020

STUD

3шт.

18

504088112

SENDER UNIT

Coolant, Temperature, Start Serial: HJC023413

1шт.
