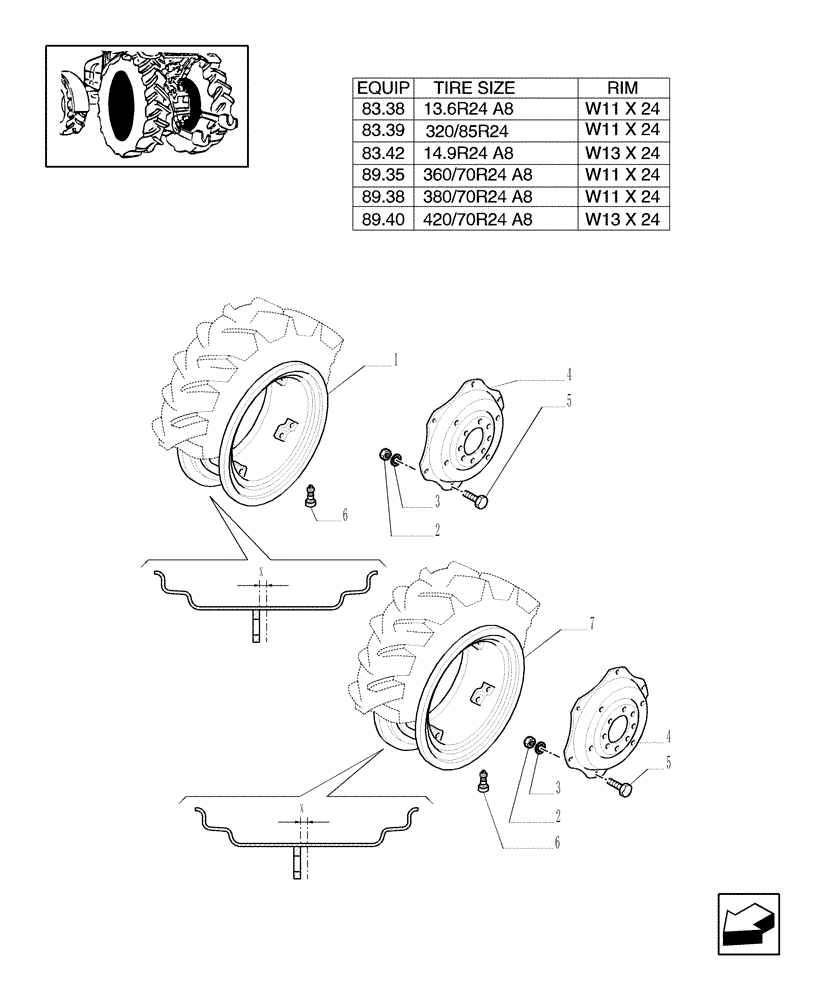

Запчасти Case IH JX1095N (83.00[04]) - DRIVE WHEELS (11) - WHEELS/TRACKS

1

47136551

RIM

W11x24 (Equip.83.38-89.35) X=55MM

2шт.

1

47136366

RIM

W11x24 (Equip.83.39-89.38) X=16 MM.

2шт.

2

10790421

NUT,M14 x 1.5, Cl 10

12шт.

3

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

12шт.

4

47128172

DISC

2шт.

5

4959999

BOLT,M14 x 1.5 x 35mm

Carriage, M14x1.5x35

12шт.

6

85700224

VALVE STEM

2шт.

7

47136556

RIM

W13x24 (Equip.89.40) X=35.5 MM.

2шт.

7

47130983

RIM

W13x24 (Equip.83.42) X=26 MM.

2шт.
