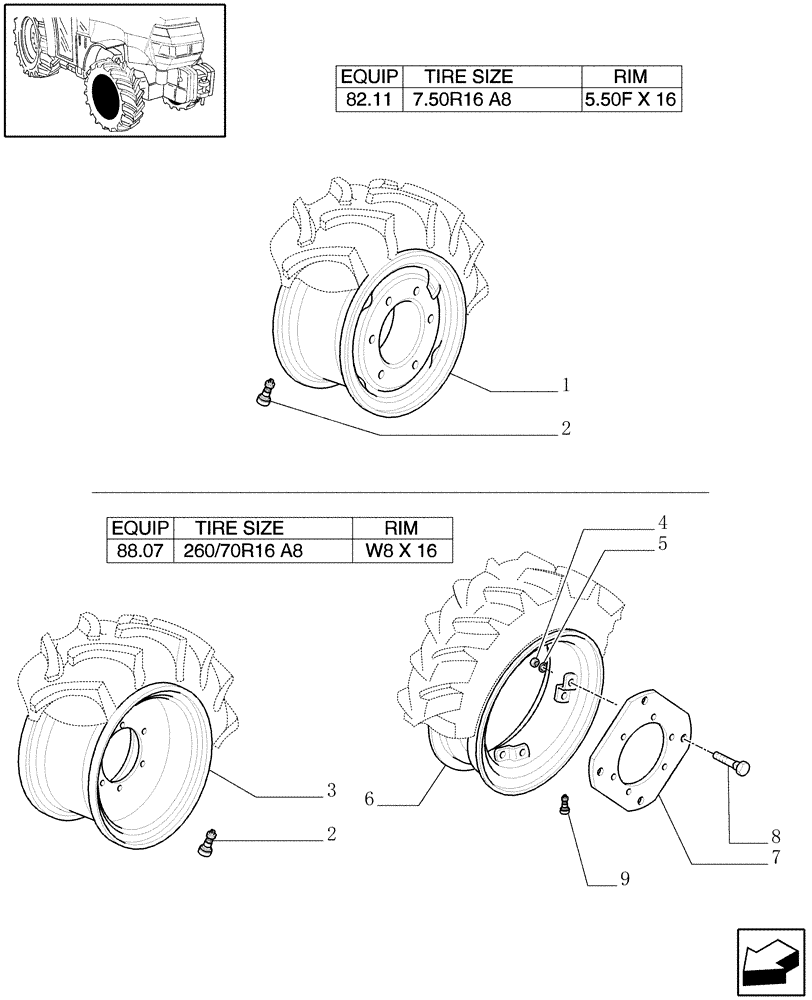

Запчасти Case IH JX1095N (82.00[02]) - 4WD DRIVING WHEELS (11) - WHEELS/TRACKS

1

47135602

RIM,405.6mm Dia x 139.7mm W, 6 Bolts, CASE Silver

5.50F x 16

2шт.

2

85700224

VALVE STEM

2шт.

3

47136467

RIM

W8 x 16, Serial Range: -C6343

2шт.

4

10790524

NUT,M16 x 1.5

, Start Serial: D6343

8шт.

5

5186568

WASHER,16.3mm ID x 31.5mm OD x 2.5mm Thk

, Start Serial: D6343

8шт.

6

84134800

RIM,405.6mm Dia x 203mm W, 4 Bolts, CASE Silver

W8 x 16, Start Serial: D6343

2шт.

7

47136351

WHEEL DISC,309mm Dia, 10 Bolts

, Start Serial: D6343

2шт.

8

4959003

BOLT,M16 x 1.5 x 40mm, CL 10.9

M16 x 1.5 x 38, Start Serial: D6343

8шт.

9

87323751

PNEUMATIC VALVE

, Start Serial: D6343

2шт.
