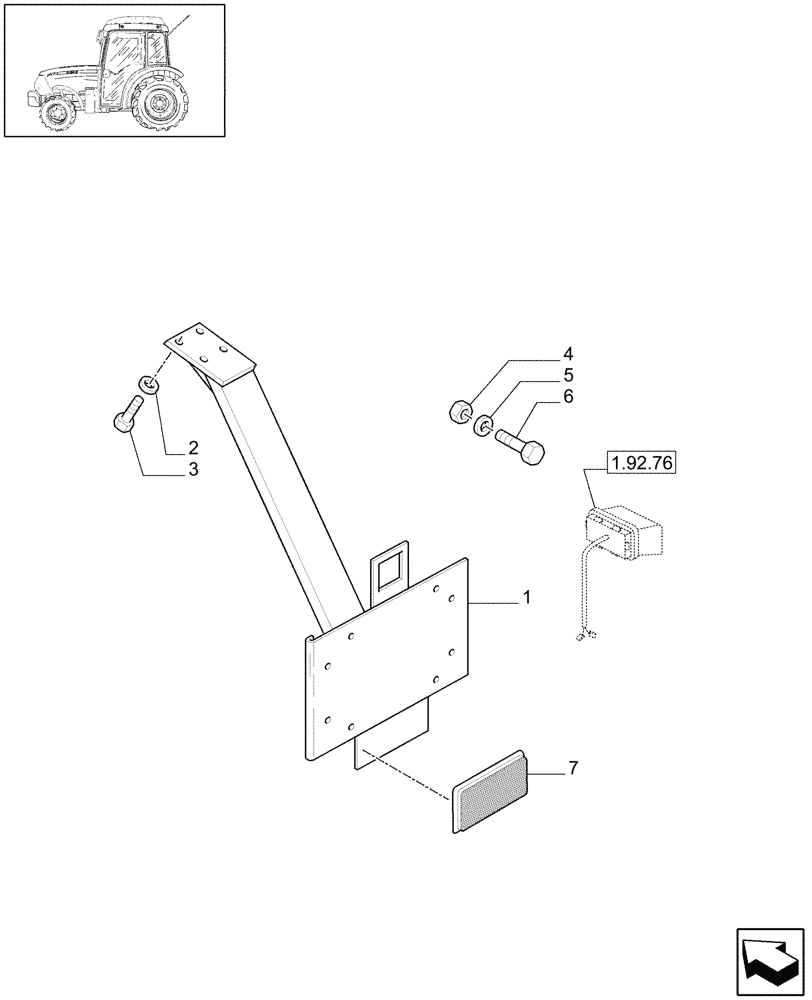

Запчасти Case IH JX1095N (1.92.99[02]) - LICENSE PLATE SUPPORT - W/CAB (10) - OPERATORS PLATFORM/CAB

1

5188643

SUPPORT

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

5

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

2шт.

6

15966217

SCREW,Pan Hd, Sq Nk, M6 x 18mm, Cl 5.8

2шт.

7

82002957

REFLECTOR

1шт.
