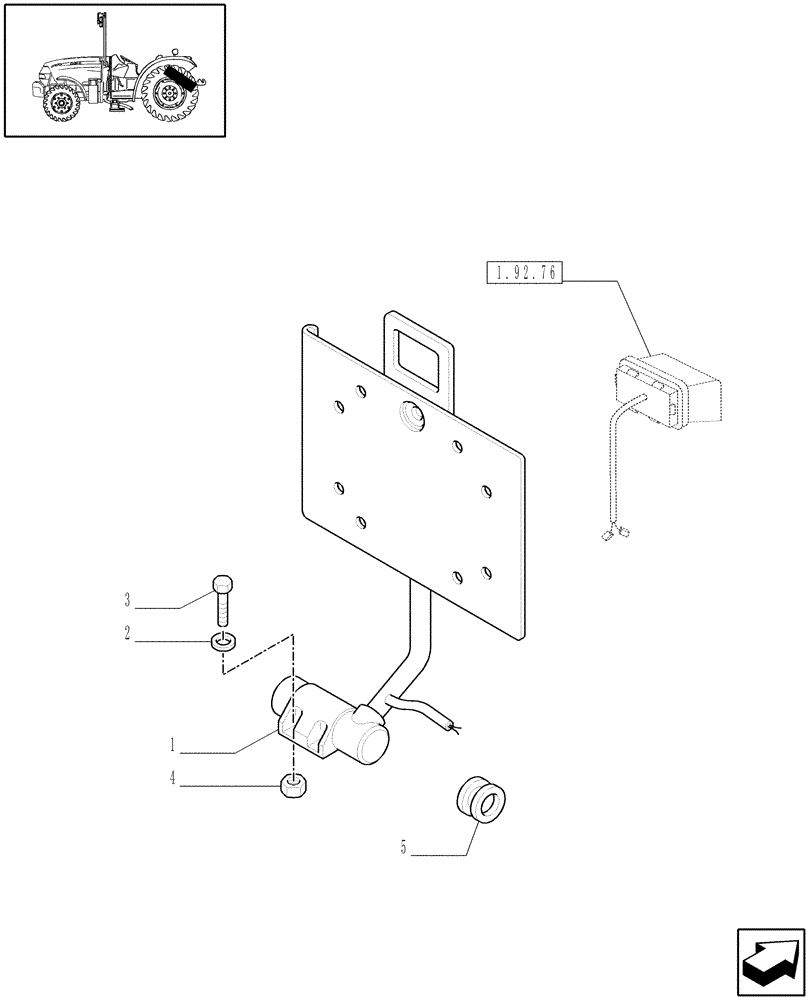

Запчасти Case IH JX1095N (1.92.99[01]) - LICENSE PLATE SUPPORT - L/CAB (10) - OPERATORS PLATFORM/CAB

1

5186356

SUPPORT

1шт.

1

5190685

SUPPORT

VAR.760

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

3

14359224

HEX SOC SCREW,M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

3

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

(VAR.001)

2шт.

4

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

2шт.

5

10403780

GROMMET,16mm ID x 22mm Groove D x 29mm OD

16x1.5

1шт.

5

10399480

GROMMET,5mm ID x 12mm OD x 8mm Thk

5x5, VAR.001

1шт.

6

5194624

BRACKET

VAR.001

1шт.
