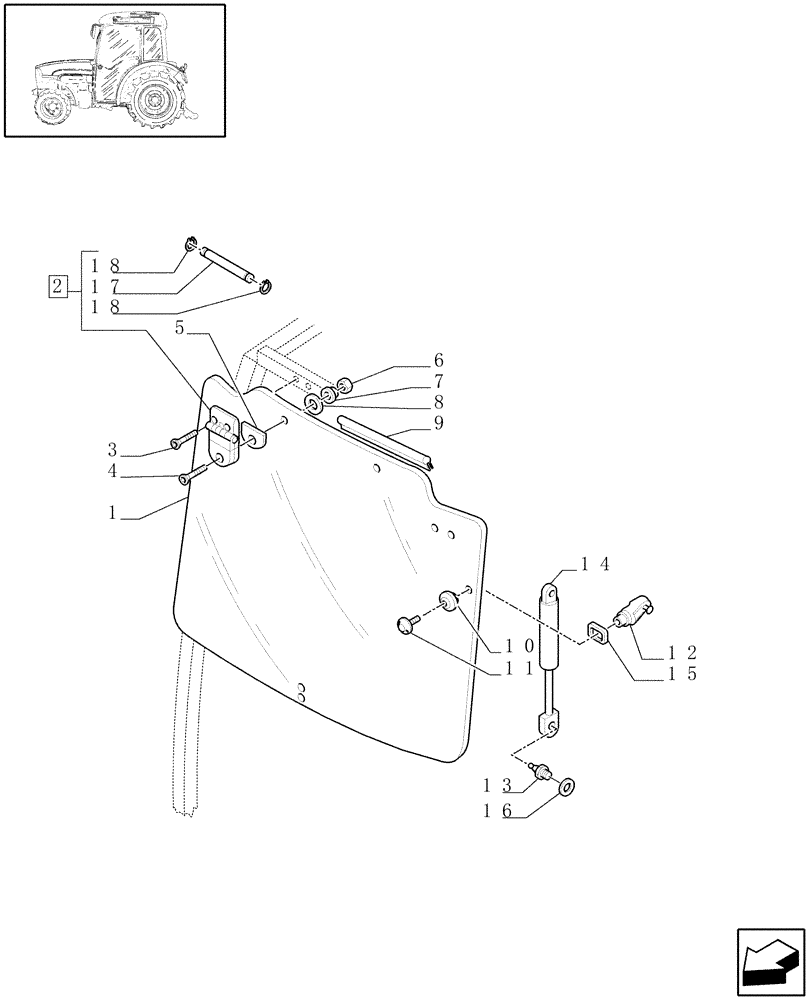

Запчасти Case IH JX1095N (1.92.97[01]) - CAB - HINGED WINDSHIELD, FRONT WINDOW AND RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB

1

47127547

CAB GLASS ASSY

1шт.

2

5185205

HINGE

2шт.

3

5182236

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

M8x20

4шт.

4

5182238

HEX SOC SCREW,CSS, M8 x 1.25 x 35mm, Cl 8.8

2шт.

5

44911858

SEAL,11mm ID x 26mm OD x 8.5mm Thk

RH

1шт.

5

44911859

SEAL,11mm ID x 26mm OD x 8.5mm Thk

LH

1шт.

6

5182282

NUT,M8 x 1.25 x 10.6mm H, Cl 8

M8

2шт.

7

44911601

STOP

2шт.

8

44910151

GASKET,15mm ID x 39mm OD x 4.5mm Thk

2шт.

9

44911822

SEAL, GLASS,2966mm L

1шт.

10

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

SEALRING

2шт.

11

5131923

CAP,M8 x 11,5mm L

2шт.

12

5147439

SUPPORT

2шт.

13

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

4шт.

14

44910537

GAS STRUT

2шт.

15

5108658

GASKET,25mm x 32mm

2шт.

16

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

4шт.

17

84155532

PIN,7.6mm OD x 87.8mm L

1шт.

18

11065676

SNAP RING,M8, Ext

2шт.
