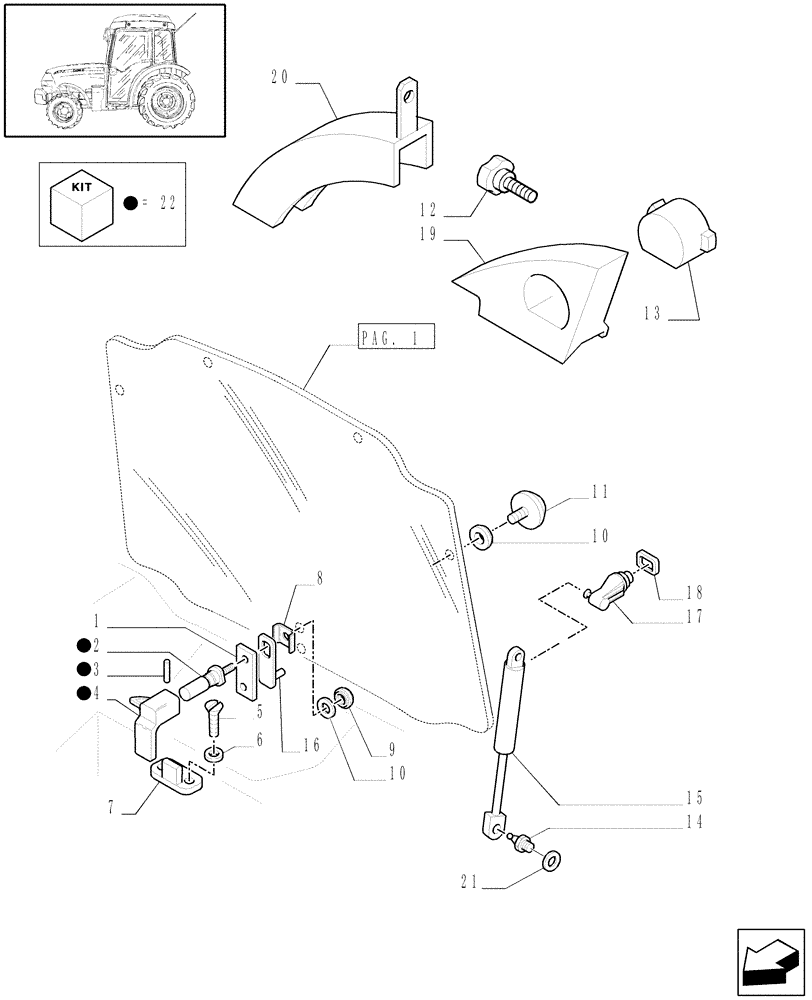

Запчасти Case IH JX1095N (1.92.95[02]) - CAB - REAR WINDOW, HANDLE AND WEATHER STRIP (10) - OPERATORS PLATFORM/CAB

1

44911521

COVER PLATE

2шт.

2

5183752

PIN,26mm OD x 64.5mm L

1шт.

3

14159970

LOCK PIN,M2.5 x 20, Slotted

1шт.

4

87656446

HANDLE

1шт.

5

5182239

SCREW,Phillips Drive, Oval HD, M5 x 20mm

M5 x 20

2шт.

6

12637821

WASHER,5.15mm ID x 11mm OD x 1mm Thk

6шт.

7

44911574

STRIKER PLATE

, Serial Range: -C5745

1шт.

7

87656439

STRIKER PLATE

, Start Serial: D5745

1шт.

8

5113395

SEAL, GLASS,Window, 30mm L

1шт.

9

5120540

KNOB

8шт.

10

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

SEALRING

6шт.

11

5131923

CAP,M8 x 11,5mm L

2шт.

12

44911869

KNOB

1шт.

13

5189783

PLUG

1шт.

14

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

4шт.

15

44911878

GAS STRUT,405mm Extended, 245mm Compressed

2шт.

16

5186866

PLATE

1шт.

17

5147439

SUPPORT

2шт.

18

5108658

GASKET,25mm x 32mm

2шт.

19

44911872

INSERT

JX1095V

2шт.

19

44911873

INSERT

JX1095N

2шт.

20

44911870

BRACKET

JX1095V

2шт.

20

44911871

BRACKET

JX1095N

2шт.

21

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

4шт.

22

87658582

HANDLE

ASSY

1шт.
