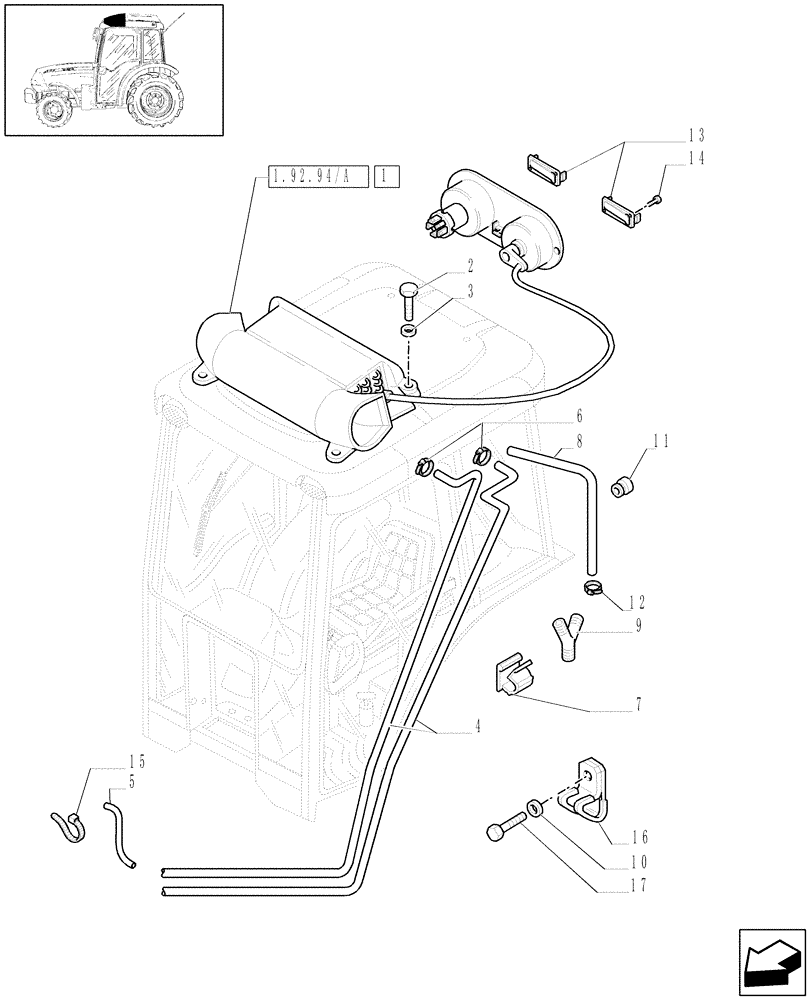

Запчасти Case IH JX1095N (1.92.94[03]) - HEATING/HEATER - PIPES AND RELEVANT PARTS. (10) - OPERATORS PLATFORM/CAB

1

5192078

HEATER

1шт.

2

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

3

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

4

5143838

FLEXIBLE HOSE

Delivery, DI=14, DE=21-22.5

1шт.

5

5186461

TUBE

Wrinkled. 300mm L

2шт.

6

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

DIA=16-25

2шт.

7

5182865

CLIP

4шт.

8

19053382

HOSE,10.00 mm

10x15

1шт.

9

5186511

HYD CONNECTOR

1шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

11

47126132

PLUG

DIA=17

2шт.

11

47126133

PLUG

DIA=20

2шт.

11

47126134

PLUG

DIA=25

2шт.

12

13423371

HOSE CLAMP,13.6mm - 15.1mm

DIA=15-13

12шт.

13

82007656

DIFFUSER

2шт.

14

15909407

SELF-TAP SCREW,Pozidriv Oval Hd, M3.5 x 1.3 x 19mm

10шт.

15

14560287

CABLE TIE,207.00mm L

COLLAR

2шт.

16

5182023

COLLAR

1шт.

17

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.
