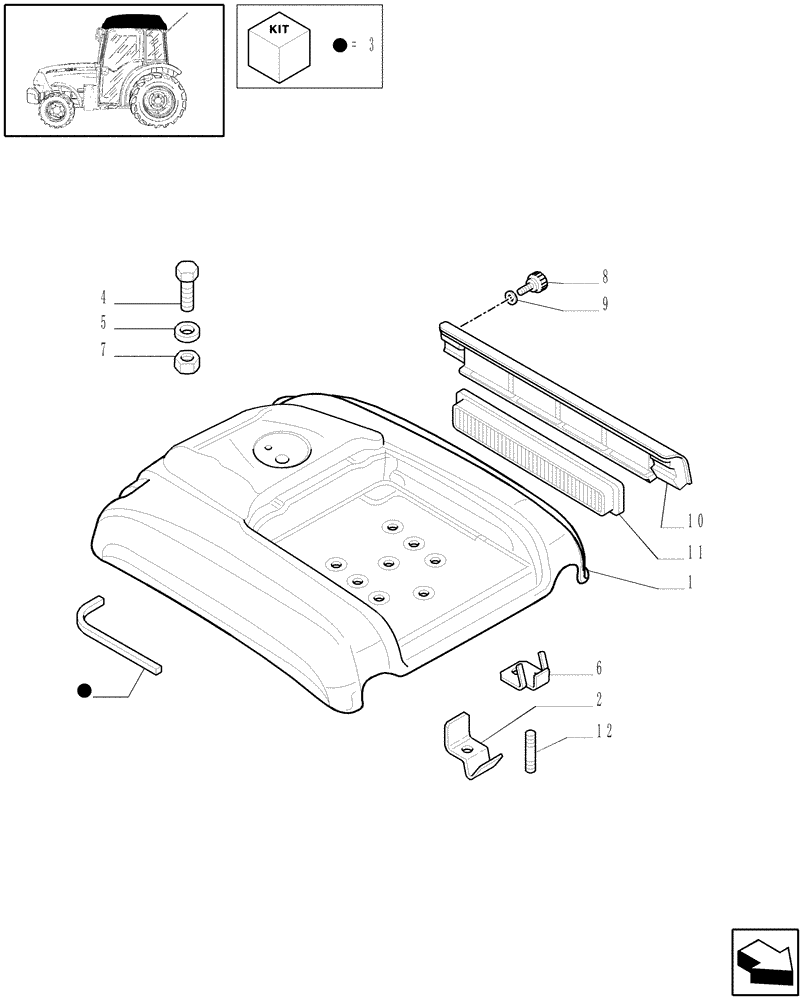

Запчасти Case IH JX1095N (1.92.94[02]) - CAB - ROOF (10) - OPERATORS PLATFORM/CAB

1

47132021

ROOF

1шт.

1

47132020

ROOF

VAR. 608

1шт.

2

44911739

RETAINER COLLAR

4шт.

3

87688921

SEAL KIT

20x20x4600

1шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

4

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

4шт.

5

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

8шт.

5

12646204

WASHER,8.15mm ID x 35mm OD x 3mm Thk

4шт.

5

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

44911707

CLAMP BRACKET

4шт.

7

12574211

NUT,M6 x 1, Cl 8

8шт.

8

44911647

KNOB,M6 x 30mm

4шт.

9

79087637

RING,3.5mm ID x 11mm OD x 2mm Thk

4шт.

10

47132023

COVER

LH

1шт.

10

47132025

COVER

RH

1шт.

11

47137323

CAB FILTER

2шт.

11

44911740

AIR FILTER,Carbon

VAR. 645 ( Carbon filter )

2шт.

12

11500821

STUD,M6 x 39mm L, Cl 8.8

M6x30

8шт.
