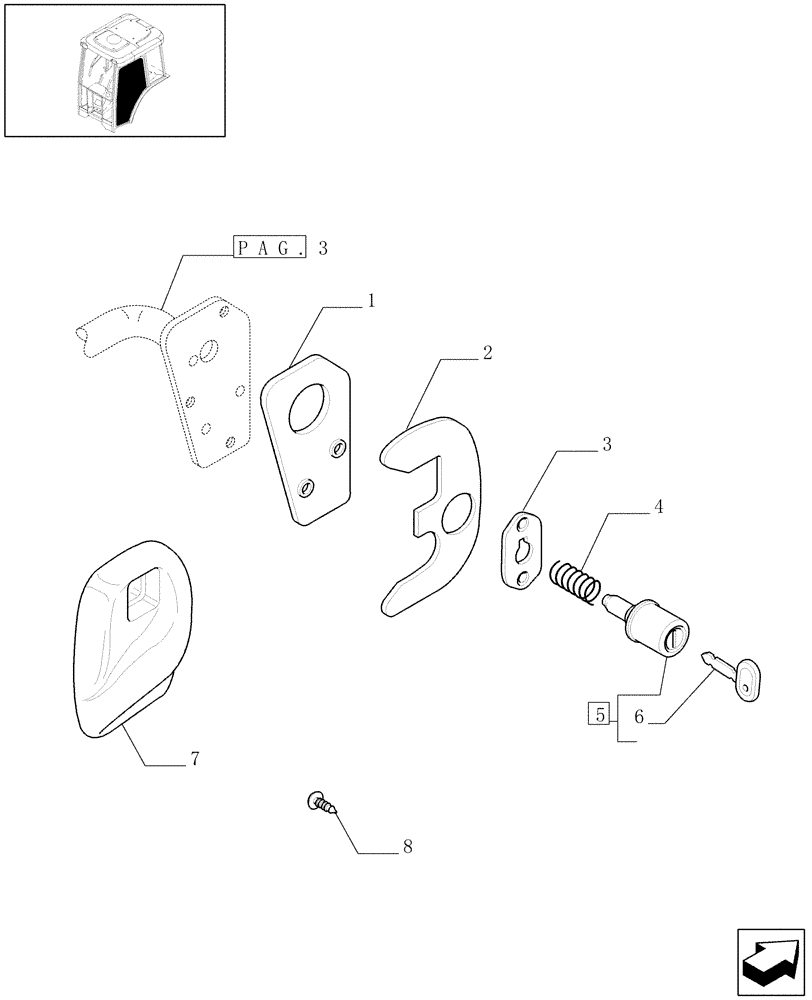

Запчасти Case IH JX1095N (1.92.92[04]) - CAB - DOOR OUTER HANDLE AND RELEVANT PARTS - C5188 (10) - OPERATORS PLATFORM/CAB

1

44910534

SEAL,2x11mm ID x 47mm OD x 3mm Thk

RH Inner

1шт.

1

44910535

SEAL,2x11mm ID x 47mm OD x 3mm Thk

LH Inner

1шт.

2

5182027

GASKET,2x30mm OD x 165mm L x 4.5mm Thk

LH Outer

1шт.

2

5182028

GASKET

RH Outer

1шт.

3

44911564

COVER PLATE

2шт.

4

44911576

SPRING

2шт.

5

44911575

LOCK CYLINDER

2шт.

6

9970438

DOOR LOCK KEY

2шт.

7

44911562

HANDLE

RH Outer

1шт.

7

44911563

HANDLE

LH Outer

1шт.

8

12678801

SCREW,Pozidriv, Flat Csk Hd, M3 x 2 x 8mm

M3x8

1шт.
