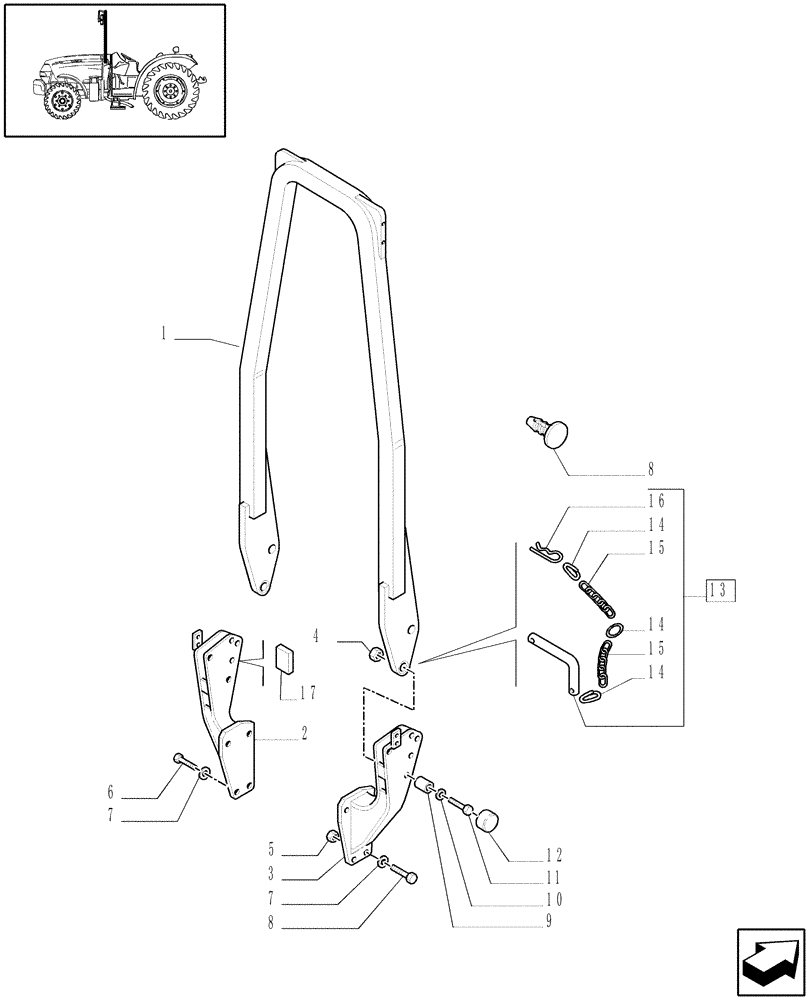

Запчасти Case IH JX1095N (1.92.89/02) - (VAR.101) NOISE REDUCTION PACKAGE - ROPS & RELATED PARTS (10) - OPERATORS PLATFORM/CAB

1

47137406

ROPS

1шт.

2

47131366

SUPPORT

RH

1шт.

3

47131368

SUPPORT

LH

1шт.

4

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

2шт.

5

12164714

NUT,M10 x 1.25, Cl 8

2шт.

6

47125354

SCREW

M8

4шт.

7

11190879

BELLEVILLE WASHER,M12 Bolt Size x 30mm OD

1шт.

7

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

M12

4шт.

8

14592587

BUTTON,Button, M6.50 x 3.50mm

6.5x3.5

4шт.

9

47125408

RUBBER BUSHING

4шт.

10

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

11

15985021

BOLT,Hex, M18 x 1.5 x 90mm, Cl 8.8

2шт.

12

5174839

SOFT TRIM

2шт.

12

5126232

COVER

For M10 Screw Only

2шт.

13

47127483

PIN

6шт.

14

44901192

SNAP RING,25mm ID

6шт.

15

44905637

CHAIN,262.8mm L

4шт.

16

44901190

COTTER PIN,6.3mm x 77.6mm L

2шт.

17

5180592

RUBBER SEAL

SEALRING

2шт.
