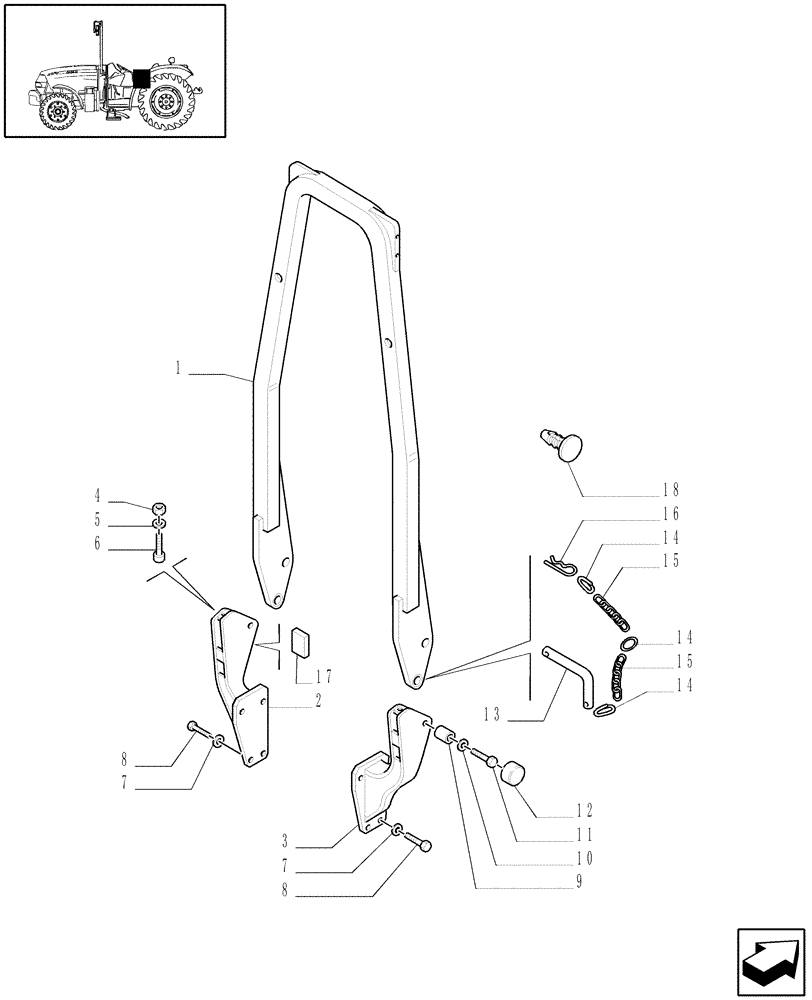

Запчасти Case IH JX1095N (1.92.89/01) - (VAR.874) SAFETY FRAME (10) - OPERATORS PLATFORM/CAB

1

47137406

ROPS

Incl. Ref. 9

1шт.

2

47131362

SUPPORT

LH, Incl. Ref. 17

1шт.

3

47131360

SUPPORT

RH, Incl. Ref. 17

1шт.

4

12164714

NUT,M10 x 1.25, Cl 8

2шт.

5

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

5

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

6

79037282

PAD

2шт.

7

11190879

BELLEVILLE WASHER,M12 Bolt Size x 30mm OD

2шт.

7

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

M12

8шт.

8

16610334

SCREW,M12 x 1.75 x 50mm

M12x50

6шт.

8

16610534

SCREW,M12 x 1.75 x 60mm, Cl 10.9

M12x60

2шт.

9

5176587

SPACER

2шт.

10

11191574

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 3.6mm Thk

4шт.

11

15835237

SCREW,Hex, M16 x 1.5 x 70mm, Cl 10.9

2шт.

12

5174839

SOFT TRIM

24x29

2шт.

12

5126232

COVER

17x21

2шт.

13

44906936

PIN,14mm OD

2шт.

14

44901192

SNAP RING,25mm ID

6шт.

15

44905637

CHAIN,262.8mm L

4шт.

16

44901190

COTTER PIN,6.3mm x 77.6mm L

2шт.

17

5180592

RUBBER SEAL

SEALRING

2шт.

18

14592587

BUTTON,Button, M6.50 x 3.50mm

6.5x3.5

4шт.
