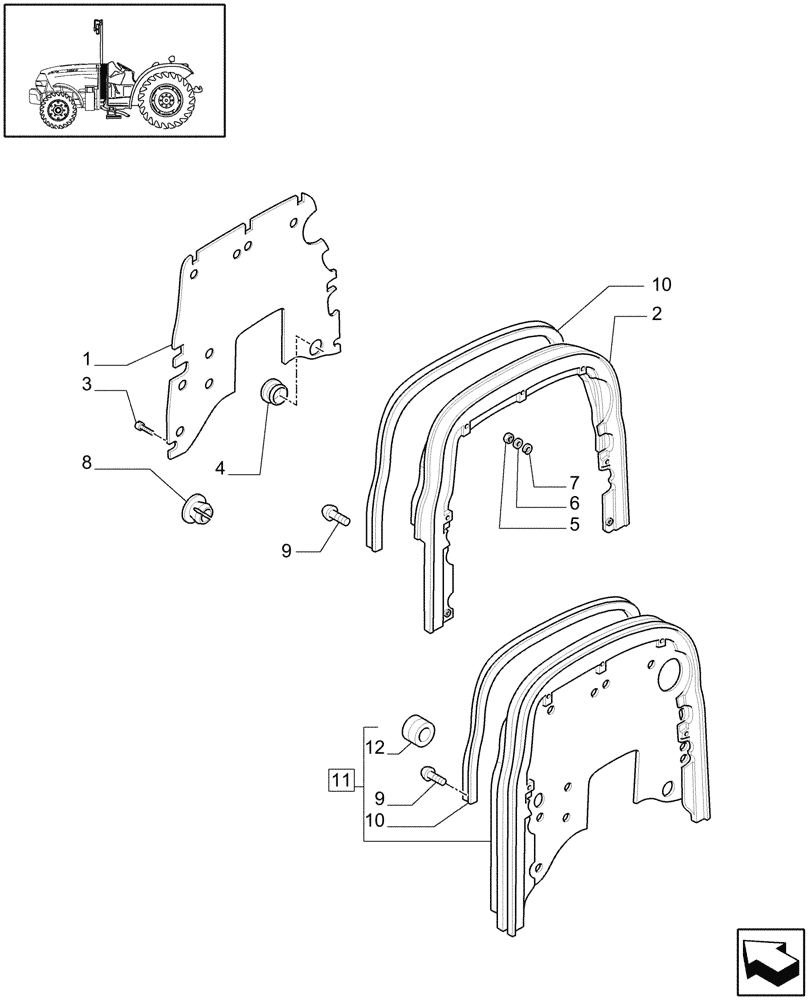

Запчасти Case IH JX1095N (1.92.88[01]) - COVERINGS - L/CAB (10) - OPERATORS PLATFORM/CAB

1

47129317

INSULATOR

1шт.

2

5192004

SOFT TRIM

Incl. Ref. 9, 10

1шт.

3

14778914

SCREW,Cross Rec Cheese Hd, M6 x 22mm, Cl 5.8

2шт.

4

5175968

PLUG,Cap locking hole

1шт.

5

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

5шт.

6

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

5шт.

7

12646604

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

5шт.

8

14507687

PLUG,20mm ID

3шт.

9

15901601

SCREW,M4 x 16mm

4 x 16

3шт.

10

5189494

SEAL

1шт.

11

47126691

SOFT TRIM

VAR.101

1шт.

12

5176859

BUSHING,7mm ID x 11mm OD x 10mm L

VAR.101

7шт.
