(1.92.85/ B[01]) - WHEAT PVC SEAT WITHOUT BELTS AND WITHOUT SWITCH - BREAKDOWN - D5644

Запчасти Case IH JX1095N (1.92.85/ B[01]) - WHEAT PVC SEAT WITHOUT BELTS AND WITHOUT SWITCH - BREAKDOWN - D5644 (10) - OPERATORS PLATFORM/CAB

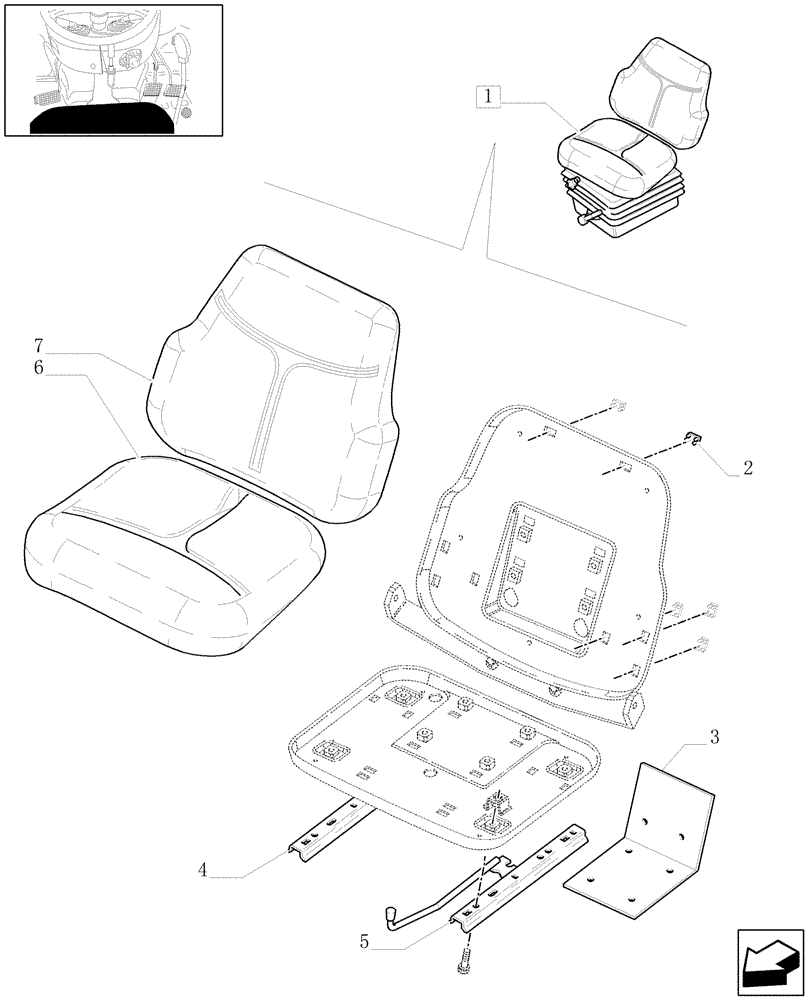

Схема запчастей Case IH JX1095N - (1.92.85/ B[01]) - WHEAT PVC SEAT WITHOUT BELTS AND WITHOUT SWITCH - BREAKDOWN - D5644 (10) - OPERATORS PLATFORM/CAB
5
3
2
1
7
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87553465

DRIVER SEAT

Wheat PVC, L/Seat Belt, L/Swiitch

1шт.

2

5197874

RETAINER COLLAR

8шт.

3

47130730

PLATE

1шт.

4

47136924

GUIDE

RH

1шт.

5

47130725

GUIDE

LH

1шт.

6

47132690

SEAT CUSHION

PVC, WHEAT

1шт.

7

47132691

SEAT BACK

PVC, WHEAT

1шт.
