(1.92.85/ A[01]) - WHEAT PVC SEAT WITHOUT BELTS AND WITHOUT SWITCH - BREAKDOWN - C5644

Запчасти Case IH JX1095N (1.92.85/ A[01]) - WHEAT PVC SEAT WITHOUT BELTS AND WITHOUT SWITCH - BREAKDOWN - C5644 (10) - OPERATORS PLATFORM/CAB

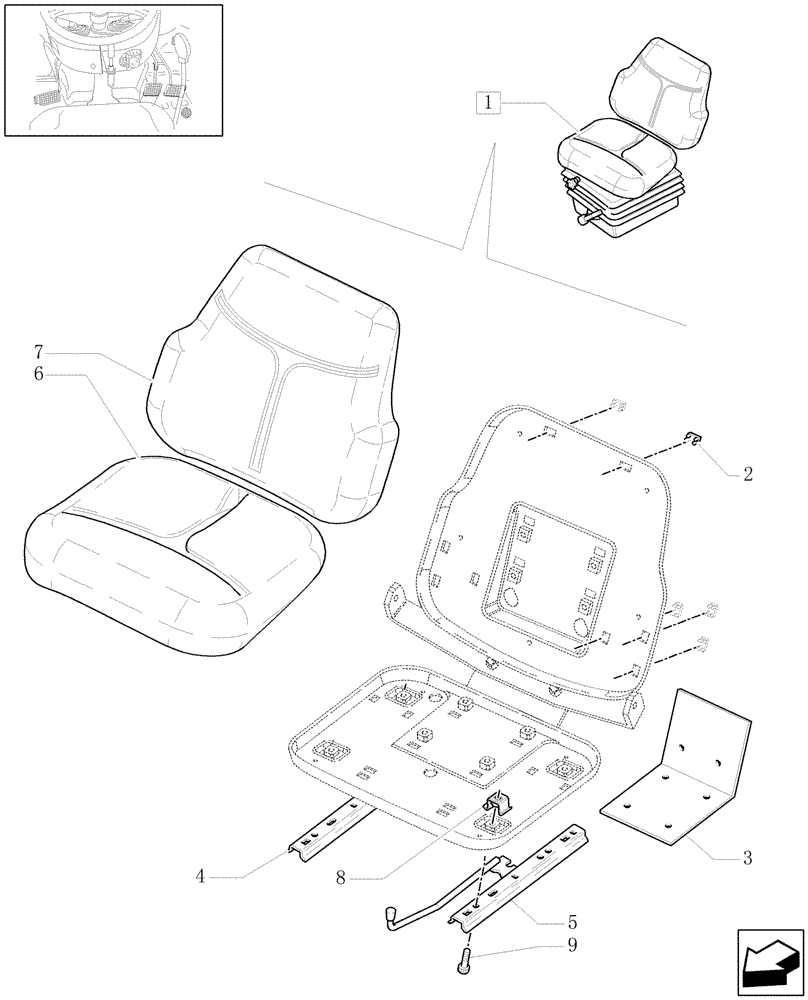

Схема запчастей Case IH JX1095N - (1.92.85/ A[01]) - WHEAT PVC SEAT WITHOUT BELTS AND WITHOUT SWITCH - BREAKDOWN - C5644 (10) - OPERATORS PLATFORM/CAB
3
7
1
4
9
5
6
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47132533

DRIVER SEAT

"MT" Wheat PVC, L/Seat Belt, L/Swiitch

1шт.

2

5197874

RETAINER COLLAR

8шт.

3

47130730

PLATE

1шт.

4

47136924

GUIDE

RH

1шт.

5

47130725

GUIDE

LH

1шт.

6

47132690

SEAT CUSHION

1шт.

7

47132691

SEAT BACK

1шт.

8

14649390

NUT

4шт.

9

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.
