(1.92.85/07B[01]) - (VAR.956) WHEAT PVC SEAT WITH BELTS, WITH SWITCH - L/CAB - BREAKDOWN - D5644

Запчасти Case IH JX1095N (1.92.85/07B[01]) - (VAR.956) WHEAT PVC SEAT WITH BELTS, WITH SWITCH - L/CAB - BREAKDOWN - D5644 (10) - OPERATORS PLATFORM/CAB

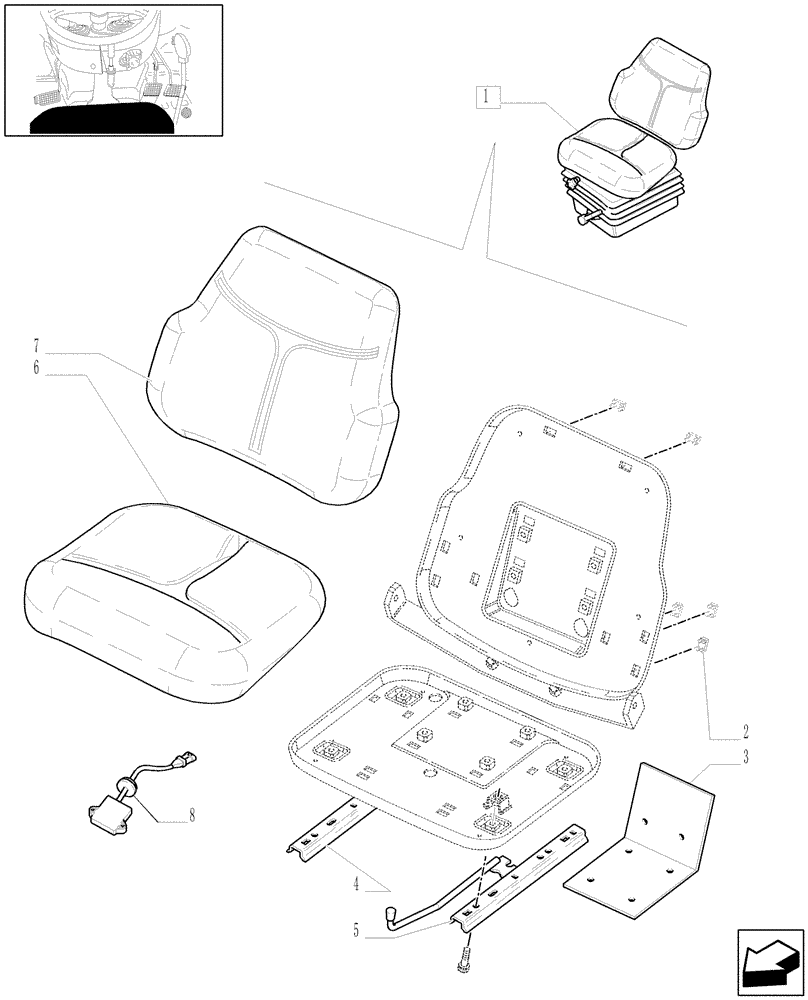

Схема запчастей Case IH JX1095N - (1.92.85/07B[01]) - (VAR.956) WHEAT PVC SEAT WITH BELTS, WITH SWITCH - L/CAB - BREAKDOWN - D5644 (10) - OPERATORS PLATFORM/CAB
6
2
1
5
4
7
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87553482

DRIVER SEAT

Wheat PVC Seat, W/Belt, W/Switch

1шт.

2

5197874

RETAINER COLLAR

8шт.

3

47130730

PLATE

1шт.

4

47136924

GUIDE

RH

1шт.

5

47130725

GUIDE

LH

1шт.

6

47132689

SEAT CUSHION

pvc, wheat

1шт.

7

47132691

SEAT BACK

pvc, wheat

1шт.

8

87552427

SWITCH,Operator Presence

1шт.
