(1.92.85/07) - (VAR.956) WHEAT PVC SEAT WITH BELTS, WITH SWITCH - L/CAB

Запчасти Case IH JX1095N (1.92.85/07) - (VAR.956) WHEAT PVC SEAT WITH BELTS, WITH SWITCH - L/CAB (10) - OPERATORS PLATFORM/CAB

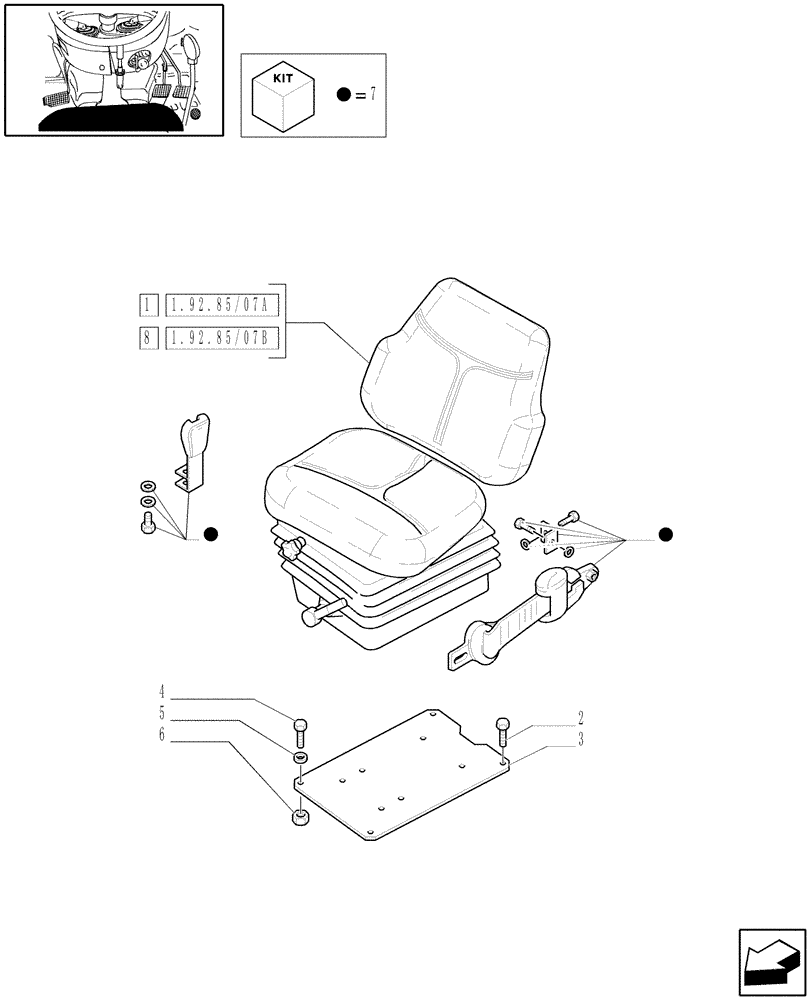

Схема запчастей Case IH JX1095N - (1.92.85/07) - (VAR.956) WHEAT PVC SEAT WITH BELTS, WITH SWITCH - L/CAB (10) - OPERATORS PLATFORM/CAB
7
1.92.85/07b
2
6
3
7
7
4
8
1.92.85/07a
7
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47132535

DRIVER SEAT

, Serial Range: -C5644

1шт.

2

14441927

SCREW,FLAT, M8 x 16mm, Cl 8.8

1шт.

3

5196614

PLATE

1шт.

4

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

M8 x 22

2шт.

5

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

DIA=8

4шт.

6

5182253

NUT

M8

2шт.

7

47130720

KIT

KIT

1шт.

8

87553482

DRIVER SEAT

ASSY, Start Serial: D5644

1шт.
