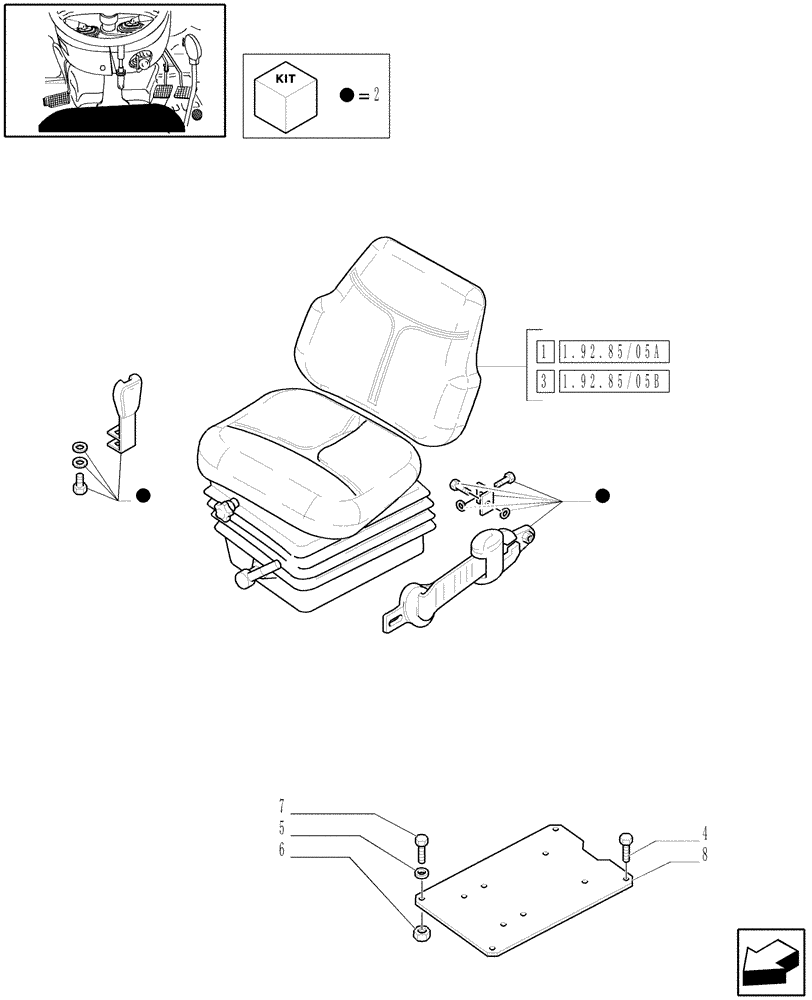

Запчасти Case IH JX1095N (1.92.85/05) - (VAR.963) CASE SEAT WITH BELTS AND SWITCH - W/CAB (10) - OPERATORS PLATFORM/CAB

1

47132539

DRIVER SEAT

Case Cloth, W/Belts, W/Switch

1шт.

2

47130720

KIT

1шт.

3

87553492

DRIVER SEAT

ASSY, Start Serial: D5644

1шт.

4

14442021

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 8.8

, Start Serial: D5644

4шт.

5

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

, Start Serial: D5644

4шт.

6

5182253

NUT

, Start Serial: D5644

2шт.

7

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

, Start Serial: D5644

2шт.

8

5196614

PLATE

, Start Serial: D5644

1шт.
