(1.92.85/04A[01]) - (VAR.859) CASE SEAT WITH AIR SUSPENSION, SWITCH - W/CAB - BREAKDOWN

Запчасти Case IH JX1095N (1.92.85/04A[01]) - (VAR.859) CASE SEAT WITH AIR SUSPENSION, SWITCH - W/CAB - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

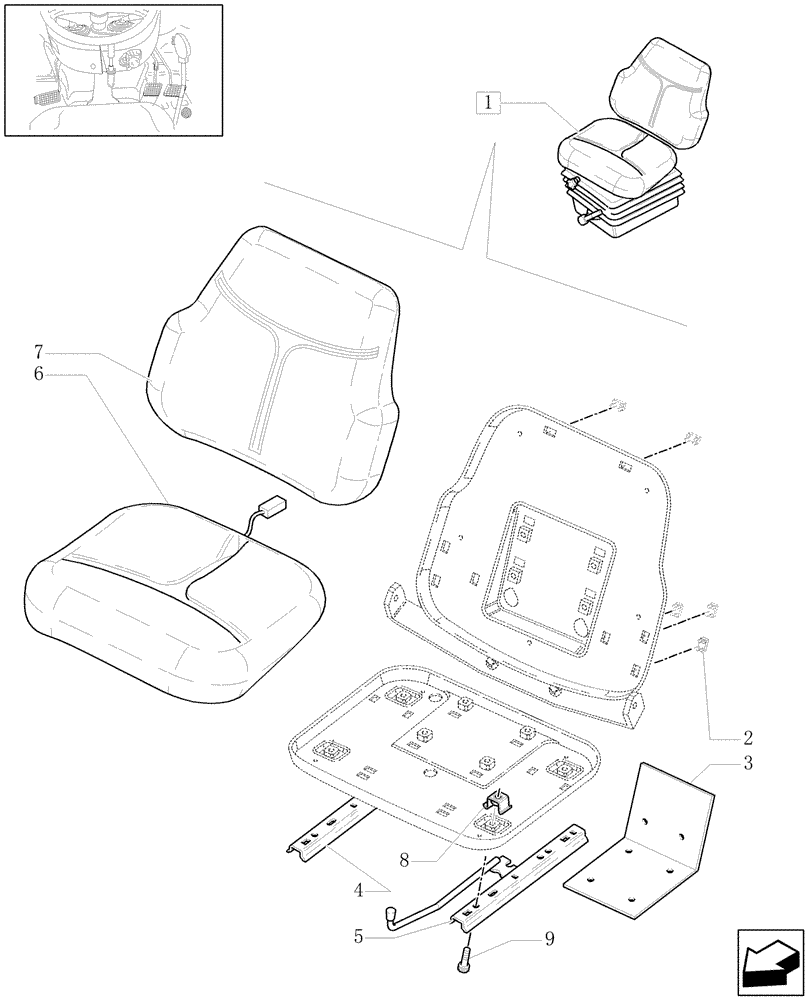

Схема запчастей Case IH JX1095N - (1.92.85/04A[01]) - (VAR.859) CASE SEAT WITH AIR SUSPENSION, SWITCH - W/CAB - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
8
6
4
5
2
3
1
9
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47134643

DRIVER SEAT

Case Cloth, W/Switch, W/Air Susp.

1шт.

2

5197874

RETAINER COLLAR

8шт.

3

47130730

PLATE

1шт.

4

47136924

GUIDE

RH

1шт.

5

47130725

GUIDE

LH

1шт.

6

47132692

SEAT CUSHION

1шт.

7

47132694

SEAT BACK

1шт.

8

14649390

NUT

4шт.

9

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 9
