(1.92.85/03A[02]) - (VAR.850) CASE SEAT WITH AIR SUSPENSION, BELTS AND SWITCH - W/CAB - BREAKDOWN

Запчасти Case IH JX1095N (1.92.85/03A[02]) - (VAR.850) CASE SEAT WITH AIR SUSPENSION, BELTS AND SWITCH - W/CAB - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

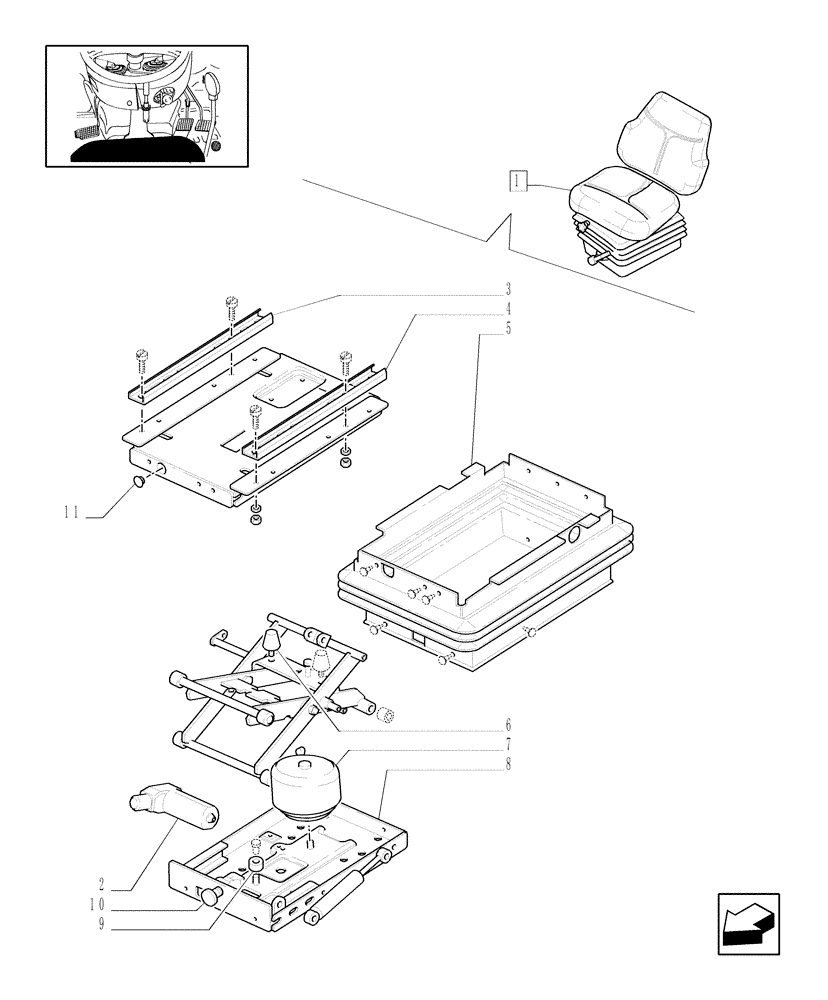

Схема запчастей Case IH JX1095N - (1.92.85/03A[02]) - (VAR.850) CASE SEAT WITH AIR SUSPENSION, BELTS AND SWITCH - W/CAB - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
2
6
3
5
4
11
9
10
8
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47132540

DRIVER SEAT

"MT" Canto Cloth, W/Belts, W/Switch, W/Air Susp

1шт.

2

5197879

AIR COMPRESSOR

1шт.

3

5197885

GUIDE

RH

1шт.

4

5197884

GUIDE

LH

1шт.

5

5197883

BELLOWS

2шт.

6

5197882

RUBBER PAD

2шт.

7

5197881

SPRING

1шт.

8

5197878

SHOCK ABSORBER

1шт.

9

5197877

SPEED GOVERNOR

1шт.

10

5197880

PUSH BUTTON

1шт.

11

47136906

PLUG

1шт.

Выбрано товаров: 11
